Zebra
Wired 1D/2D barcode scanner

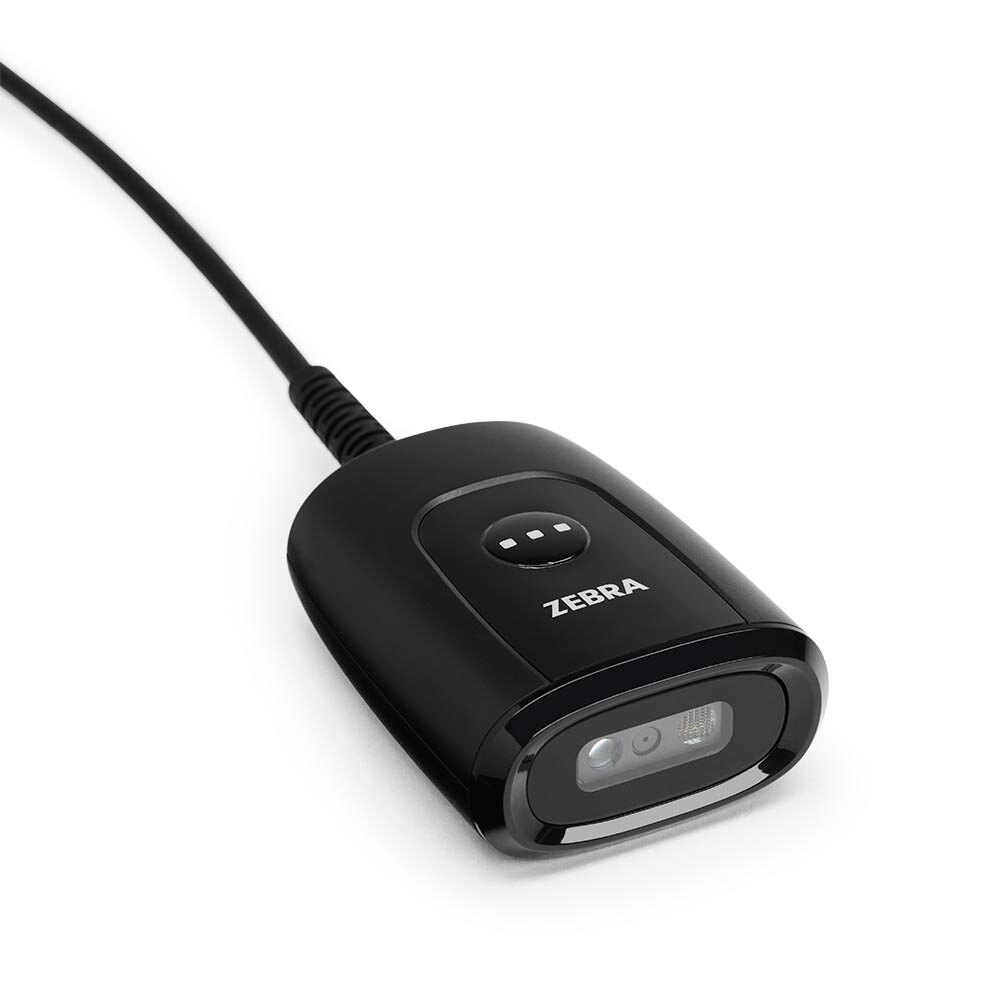

Zebra DS5502 – Wired 1D/2D barcode scanner (USB kit, Black)
The DS5502: affordable 1D/2D scanning, with a laboratory version.
Manufacturer part no. DS5502-SR4US70MMZW
· Launched in 2024
In stock
Delivery in 2 to 3 days
Zebra barcode scanner DS5502, connection: Corded USB, range: Standard, colour black, connection: Corded USB, range: Standard.
Key specifications of this reference:
- Connection: Corded USB
- Range: Standard
- Keypad: Without keypad
- Colour: Black
- Ships with: USB kit
This reference
- Manufacturer part no.
- DS5502-SR4US70MMZW
- Brand
- Zebra
- Family
- Zebra DS5502
- Launched in
- 2024
Key specifications
- Type
- Fixed bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, EAN 2, EAN 5, GS1 DataBar, MSI-Plessey, PDF417, U.P.C.
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Optical sensor resolution (W x H)
- 1280 x 800 pixels
- Horizontal field of view
- 48°
- Vertical field of view
- 30°
- Wavelength
- 525 nm
- Connectivity technology
- Wired
- Standard interfaces
- RS-232, USB
- International Protection (IP) code
- IP54
- Protection features
- Electrostatic Discharge (ESD) protection
- Product colour
- Black
Compatible accessories
The DS5502: affordable 1D/2D scanning, with a laboratory version.
The Zebra DS5502 is a cost-effective and reliable wired 1D/2D imager for use at the till and in the back office. It reads codes from paper and on-screen, via USB or serial interfaces.
USB or serial kits, multi-position mount, white version for laboratories.
Highlights
- 1D/2D scanning and on-screen codes
- USB or serial kit

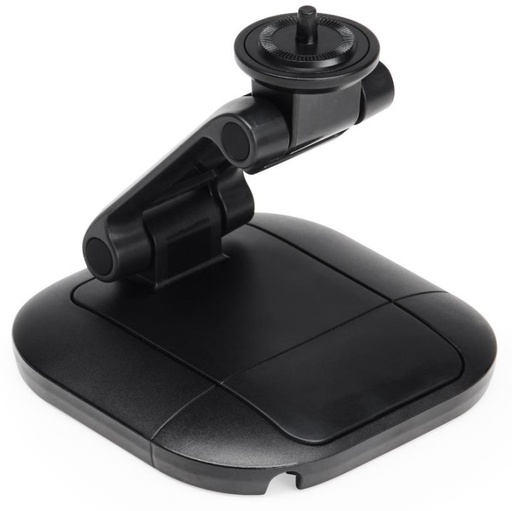

- Optional multi-position mount
- White laboratory version
- Good value for money
Ideal for : Retail, offices, laboratories.
Technical specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 2, EAN 5, GS1 DataBar, MSI-Plessey, PDF417, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 48° |
| Vertical field of view | 30° |
| Wavelength | 525 nm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
| Performance | |
| International Protection (IP) code | IP54 |
| Protection features | Electrostatic Discharge (ESD) protection |
| Product colour | Black |
| Power | |
| Power source type | DC |
| Input voltage | 4.75 V |
| Power consumption | 360 mA |
| Weight & dimensions | |
| Width | 72 mm |
| Depth | 30 mm |
| Height | 56 mm |
| Weight | 65.2 g |
| Packaging data | |

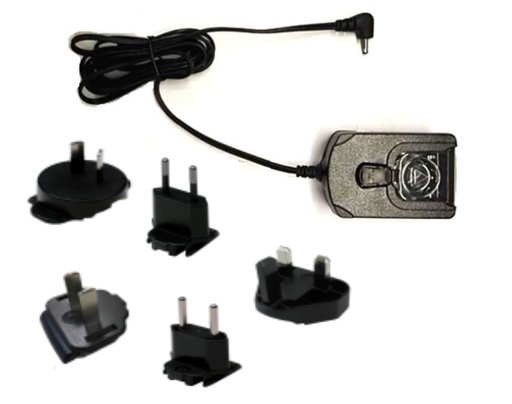

| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Technical details | |
| Compliance certificates | China RoHS, REACH, RoHS |
Why R2Scan
Authorised reseller, stock in Belgium, device configuration and commissioning, technical support and in-house repair workshop.
