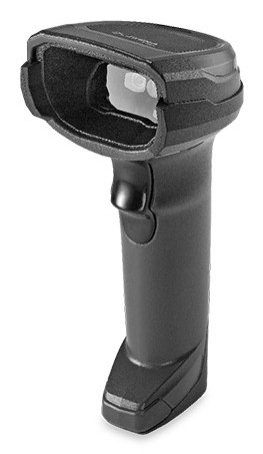

Zebra DS8178 – Premium Bluetooth 1D/2D barcode scanner (Bluetooth, USB charging cradle, Black)
The DS8178: the wireless version of the DS8108, complete with a presentation stand and a PowerPrecision+ battery.
Zebra barcode scanner DS8178, connection: Bluetooth (cordless), range: Standard, colour black, connection: Bluetooth (cordless).
Key specifications of this reference:
- Connection: Bluetooth (cordless)
- Range: Standard
- Keypad: Without keypad
- Colour: Black
- Ships with: Base included
This reference
- Manufacturer part no.
- DS8178-SR700000SFW
- EAN
- 0842024907329
- Brand
- Zebra
- Family
- Zebra DS8178
- Launched in
- 2017
Key specifications
- Type
- Handheld bar code reader
- Optical sensor resolution
- 1280 pixels
- Scanner type
- 1D/2D
- Sensor type
- Photo diode
- Working distance
- 61 cm
- Wavelength
- 617 nm
- Tilt reading angle
- 0 - 360°
- Pitch reading angle
- 0 - 60°
- Yaw reading angle
- 0 - 60°
- Connectivity technology
- Wired & Wireless
- Standard interfaces
- USB, RS-232, Bluetooth
- Wireless range
- 100 m
- Bluetooth version
- 4.0
- PC connection
- RS-232/USB
Compatible accessories
The DS8178: the wireless version of the DS8108, complete with a presentation stand and a PowerPrecision+ battery.
The Zebra DS8178 offers the performance of the DS8108 via Bluetooth: a standard dock or presentation dock that acts as a hands-free stand, a PowerPrecision+ smart battery, and Wi-Fi Friendly mode.
Healthcare (HC) versions that can be disinfected and FIPS versions for data security.
Highlights
- Bluetooth, standard or display dock
- PowerPrecision+ battery
- Ultra-fast 1D/2D scanning
- Healthcare version – suitable for disinfection
- FIPS versions
Ideal for : Retail, healthcare, hospitality.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | Photo diode |
| Working distance | 61 cm |
| Wavelength | 617 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 60° |
| Yaw reading angle | 0 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | USB, RS-232, Bluetooth |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| PC connection | RS-232/USB |
| Performance | |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Power | |
| Power source type | Battery |
| Battery life | 83 h |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 235.3 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2500 mAh |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
