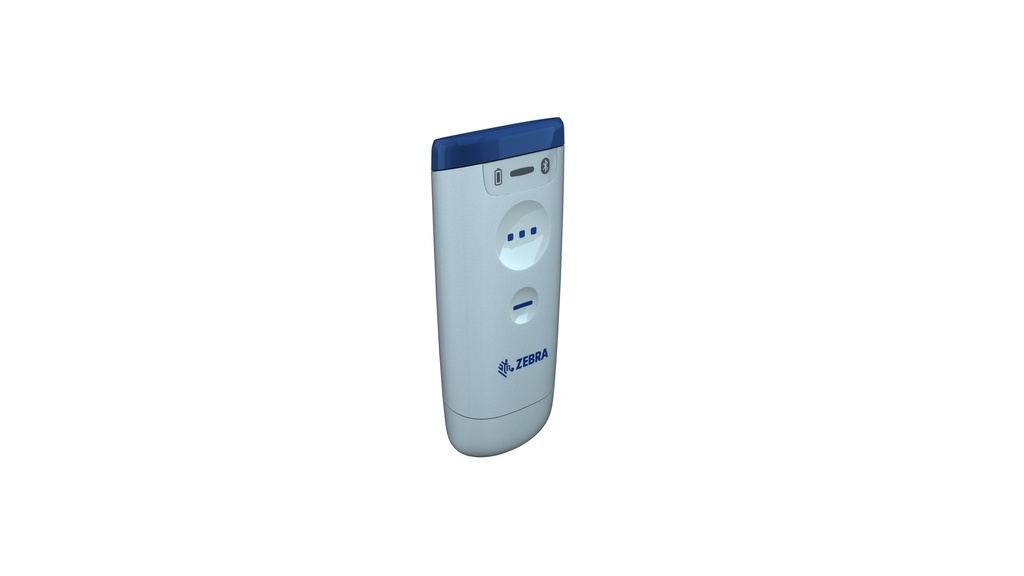

Zebra CS6080 – Convertible 1D/2D companion scanner
The CS6080: the pocket-sized scanner that switches between wired and wireless modes, with wireless charging.
Zebra barcode scanner CS6080, connection: Corded USB, colour white, connection: Bluetooth (cordless), range: Standard, colour noir.
Key specifications of this reference:
- Connection: Corded USB
- Keypad: Without keypad
- Colour: White
This reference
- Manufacturer part no.
- CS6080-HCKF00BVZWW
- EAN
- 8596375236585
- Brand
- Zebra
- Family
- Zebra CS6080
- Launched in
- 2020
Key specifications
- Type
- Handheld bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C.
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Optical sensor resolution (W x H)
- 1280 x 960 pixels
- Light levels (direct sunlight)
- 0 - 108000 lx
- Wavelength
- 525 nm
- Tilt reading angle
- -60 - 60°
- Pitch reading angle
- -60 - 60°
- Yaw reading angle
- 0 - 360°
- Connectivity technology
- Wireless
- Standard interfaces
- Bluetooth, USB
- Wireless range
- 100 m
Compatible accessories
The CS6080: the pocket-sized scanner that switches between wired and wireless modes, with wireless charging.
The Zebra CS6080 is a compact 1D/2D companion scanner: use it with a USB cable or wirelessly via Bluetooth, with induction charging in its docking station. Its battery can be replaced without tools.
White, disinfectable healthcare (HC) version; FIPS-compliant versions. Ideal for customer engagement, lean inventory management and healthcare.
Highlights
- Wired or Bluetooth, convertible
- Inductive charging
- 1D/2D scanning, on-screen codes
- Healthcare version – suitable for disinfection
- Replaceable battery
Ideal for : Retail, hospitality, healthcare, laboratories.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Wavelength | 525 nm |
| Tilt reading angle | -60 - 60° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | 0 - 360° |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth, USB |
| Wireless range | 100 m |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Performance | |
| International Protection (IP) code | IP65 |
| LED indicators | Yes |
| Product colour | White |
| Certification | FIPS 140-2 |
| Power | |
| Power source type | AC, DC, USB |
| Number of reads per charge | 13000 |
| Power consumption | 400 mA |
| Weight & dimensions | |
| Width | 46 mm |
| Depth | 109 mm |
| Height | 23 mm |
| Weight | 58 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
Why R2Scan
Authorised reseller, stock in Belgium, device configuration and commissioning, technical support and in-house repair workshop.
