Zebra
Convertible 1D/2D companion scanner

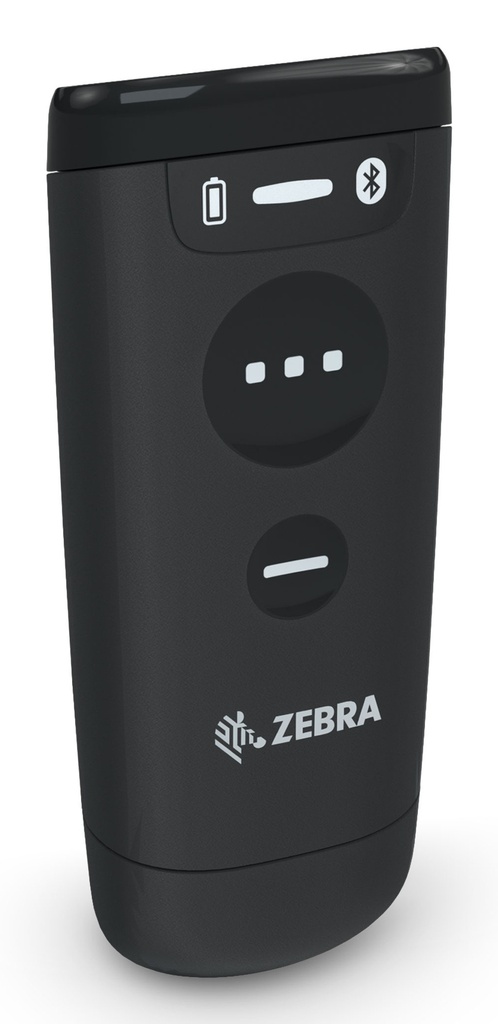

Zebra CS6080 – Convertible 1D/2D companion scanner (Black)
The CS6080: the pocket-sized scanner that switches between wired and wireless modes, with wireless charging.
Manufacturer part no. CS6080-SR400004QVW
· Launched in 2020
In stock
Delivery in 2 to 3 days
Zebra barcode scanner CS6080, connection: Bluetooth (cordless), range: Standard, colour black.
Key specifications of this reference:
- Connection: Bluetooth (cordless)
- Range: Standard
- Keypad: Without keypad
- Colour: Black
- Ships with: Qi charger
This reference
- Manufacturer part no.
- CS6080-SR400004QVW
- Brand
- Zebra
- Family
- Zebra CS6080
- Launched in
- 2020
Key specifications
- Type
- Handheld bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Optical sensor resolution (W x H)
- 1280 x 960 pixels
- Horizontal field of view
- 45°
- Vertical field of view
- 34°
- Light levels (direct sunlight)
- 0 - 108000 lx
- Tilt reading angle
- 0 - 360°
- Pitch reading angle
- -60 - 60°
- Yaw reading angle
- -60 - 60°
- Connectivity technology
- Wireless
- Standard interfaces
- Bluetooth
Compatible accessories
Accessory
Zebra CS6080 CORDLESS 4-SLOT DEVICE
264.00 €
Accessory
Zebra CS6080 CORDLESS 4-SLOT DEVICE
300.00 €
Accessory
Zebra 7 ft (2.1m) Corded USB
44.00 €
Accessory
Zebra 7 ft (2.1m) Corded USB
53.00 €
Case / strap / protection
Zebra Holster Silicone Protector Only CS6080
20.00 €
Case / strap / protection
Zebra Lanyard Retractor Silicon
75.00 €
Accessory
Zebra Gooseneck Intellistand
37.00 €
Battery
Zebra BT-000413 SPARE BATTERY CS6080-SR
66.00 €
Battery
Zebra SPARE BATTERY CS6080-HC
88.00 €
Power supply / cable
Zebra CS6080 Cordless Cradle Cable
22.00 €
Power supply / cable
Zebra CS6080 Cordless Cradle Cable: USB-C
22.00 €
Battery
Zebra CS6080 CORDLESS 4-SLOT BATTERY
261.00 €
Cradle / charger
Zebra CS6080 CORDLESS: PRESENTATION CRADLE
240.00 €
Cradle / charger
Zebra CS6080 CORDLESS:QI CHARGER.INDUCTIVE.BLK
23.00 €
The CS6080: the pocket-sized scanner that switches between wired and wireless modes, with wireless charging.
The Zebra CS6080 is a compact 1D/2D companion scanner: use it with a USB cable or wirelessly via Bluetooth, with induction charging in its docking station. Its battery can be replaced without tools.
White, disinfectable healthcare (HC) version; FIPS-compliant versions. Ideal for customer engagement, lean inventory management and healthcare.
Highlights
- Wired or Bluetooth, convertible
- Inductive charging
- 1D/2D scanning, on-screen codes
- Healthcare version – suitable for disinfection
- Replaceable battery
Ideal for : Retail, hospitality, healthcare, laboratories.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1 |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Horizontal field of view | 45° |
| Vertical field of view | 34° |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth |
| Wireless range | 100 m |
| Bluetooth version | 5.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Performance | |
| International Protection (IP) code | IP65 |
| LED indicators | Yes |
| Buzzer | Yes |
| Ambient lighting | Yes |
| Product colour | Black |
| Vibration function | Yes |
| Power | |
| Power source type | Battery |
| Number of reads per charge | 13000 |
| Battery life | 18 h |
| Charging time | 3 h |
| Weight & dimensions | |
| Width | 18 mm |
| Depth | 43 mm |
| Height | 9 mm |
| Weight | 83 g |
| Packaging data | |
| Charging base | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Drop resistance | 1.8 m |
| Battery | |
| Battery technology | Lithium Polymer (LiPo) |
| Battery capacity | 745 mAh |
| Technical details | |
| Warranty period | 3 year(s) |
| Compliance certificates | Mfi, REACH, RoHS, Trade Agreements Act (TAA) |
Why R2Scan
Authorised reseller, stock in Belgium, device configuration and commissioning, technical support and in-house repair workshop.
