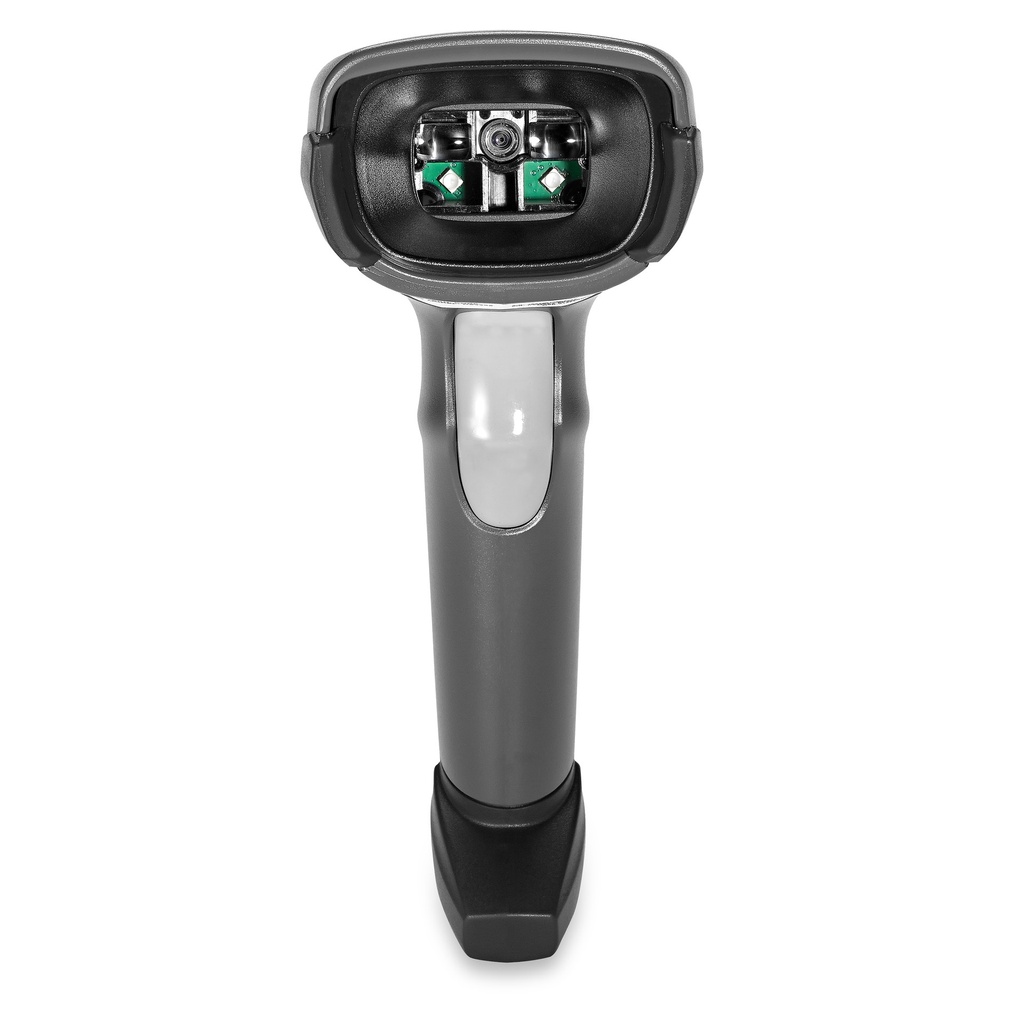

Zebra DS2208 – Wired 1D/2D barcode scanner
The affordable and simple 1D/2D scanner: just plug it in and start scanning.
Zebra barcode scanner DS2208, connection: Corded USB, range: Standard, colour black, connection: Corded USB.
Key specifications of this reference:
- Scan range: Standard
- Connection: Corded USB
- Range: Standard
- Keypad: Without keypad
- Colour: Black
This reference
- Manufacturer part no.
- DS2208-SR00007ZZWW
- EAN
- 8596375044357
- Brand
- Zebra
- Family
- Zebra DS2208
- Launched in
- 2017
Key specifications
- Type
- Handheld bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C.
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
- Optical sensor resolution (W x H)
- 640 x 480 pixels
- Wavelength
- 645 nm
- Tilt reading angle
- -65 - 65°
- Pitch reading angle
- -65 - 65°
- Motion tolerance (cm/s)
- 13
- Connectivity technology
- Wired
- Standard interfaces
- USB, RS-232, RS-485, Keyboard wedge
- USB version
- 2.0
- International Protection (IP) code
- IP42
Compatible accessories
The affordable and simple 1D/2D scanner: just plug it in and start scanning.
The Zebra DS2208 brings 2D scanning within reach of every point of sale. It scans 1D and 2D codes – whether printed or displayed on a smartphone screen – first time, using a ‘point-and-shoot’ method that requires no training.
Pre-configured at the factory and supplied with a cable featuring automatic interface detection, it is ready to use straight out of the box. Supplied as a USB kit with a stand for hands-free use.
Highlights
- 1D/2D scanning and on-screen codes
- Plug-and-play, auto-detecting USB cable
- Lightweight and ergonomic for a full day’s use
- USB kit with stand
- Drops of 1.5 m, IP42
Ideal for : Checkouts, shops, pharmacies, hospitality, tablet-based points of sale.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Wavelength | 645 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Motion tolerance (cm/s) | 13 |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB, RS-232, RS-485, Keyboard wedge |
| USB version | 2.0 |
| Performance | |
| International Protection (IP) code | IP42 |
| LED indicators | Yes |
| Built-in display | No |
| Product colour | Black |
| Power | |
| Power source type | DC, USB |
| Input voltage | 4.5 - 5.5 V |
| Power consumption | 250 mA |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 99 mm |
| Height | 165 mm |
| Weight | 161.6 g |
| Packaging data | |
| Charging base | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
