Zebra Bluetooth 1D/2D barcode scanner

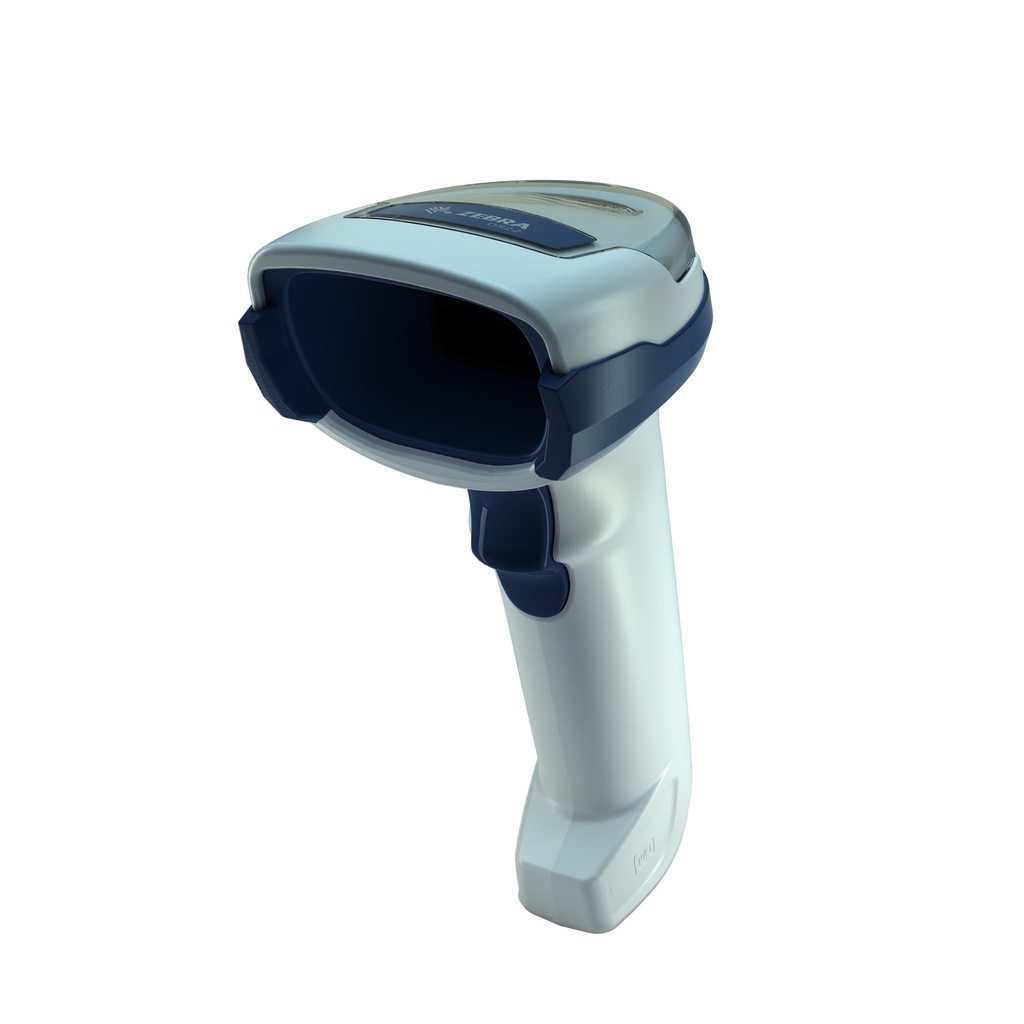

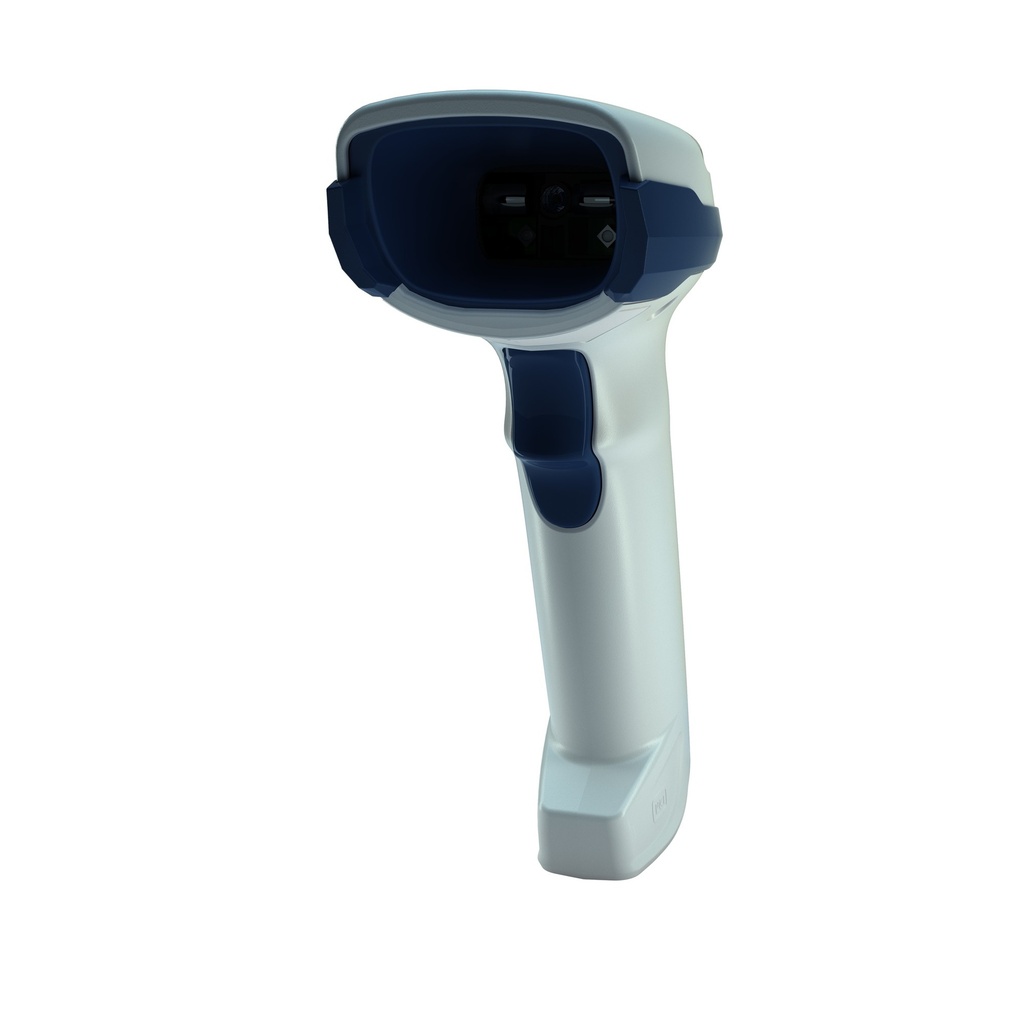

Zebra DS2278 – Bluetooth 1D/2D barcode scanner

The wireless version of the DS2208: the freedom of Bluetooth with a battery that lasts all day.

Manufacturer part no. DS2278-HCBU2100PRR · EAN 9999999999994 · Launched in 2017 In stock Delivery in 2 to 3 days
https://www.r2scan.com/web/image/product.template/1185/image_1920?unique=b5dea3f
(0 review)

Zebra barcode scanner DS2278, connection: Bluetooth (cordless), connection: Bluetooth (cordless), range: Standard.

Key specifications of this reference:

  • Connection: Bluetooth (cordless)
  • Keypad: Without keypad
  • Ships with: Base de présentation

202.00 € excl. VAT 244.42 EUR 202.00 €

244.42 € incl. VAT

Prix sur demande

  • Keyboard type
  • Connection
  • Reading
  • Ships with
  • Keyboard
  • Use
  • Brand
  • Famille

This combination does not exist.

Request a price
This reference
Manufacturer part no.
DS2278-HCBU2100PRR
EAN
9999999999994
Brand
Zebra
Family
Zebra DS2278
Launched in
2017
Key specifications
Type
Handheld bar code reader
Scanner type
1D/2D
Sensor type
LED
Linear (1D) barcodes supported
Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C.
2D (matrix & stacked) barcodes supported
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)
640 x 480 pixels
Wavelength
645 nm
Tilt reading angle
-65 - 65°
Pitch reading angle
-65 - 65°
Motion tolerance (cm/s)
13
Connectivity technology
Wired & Wireless
Standard interfaces
Bluetooth, USB
USB version
2.0
Bluetooth version
4.0
All specifications

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

See all versions of this family Zebra DS2278 (7)

Compatible accessories

The wireless version of the DS2208: the freedom of Bluetooth with a battery that lasts all day.

The Zebra DS2278 brings mobility to the counter: omnidirectional 1D/2D scanning, a 2,400 mAh lithium-ion battery that lasts a full day, and PRZM algorithms for poor-quality barcodes.

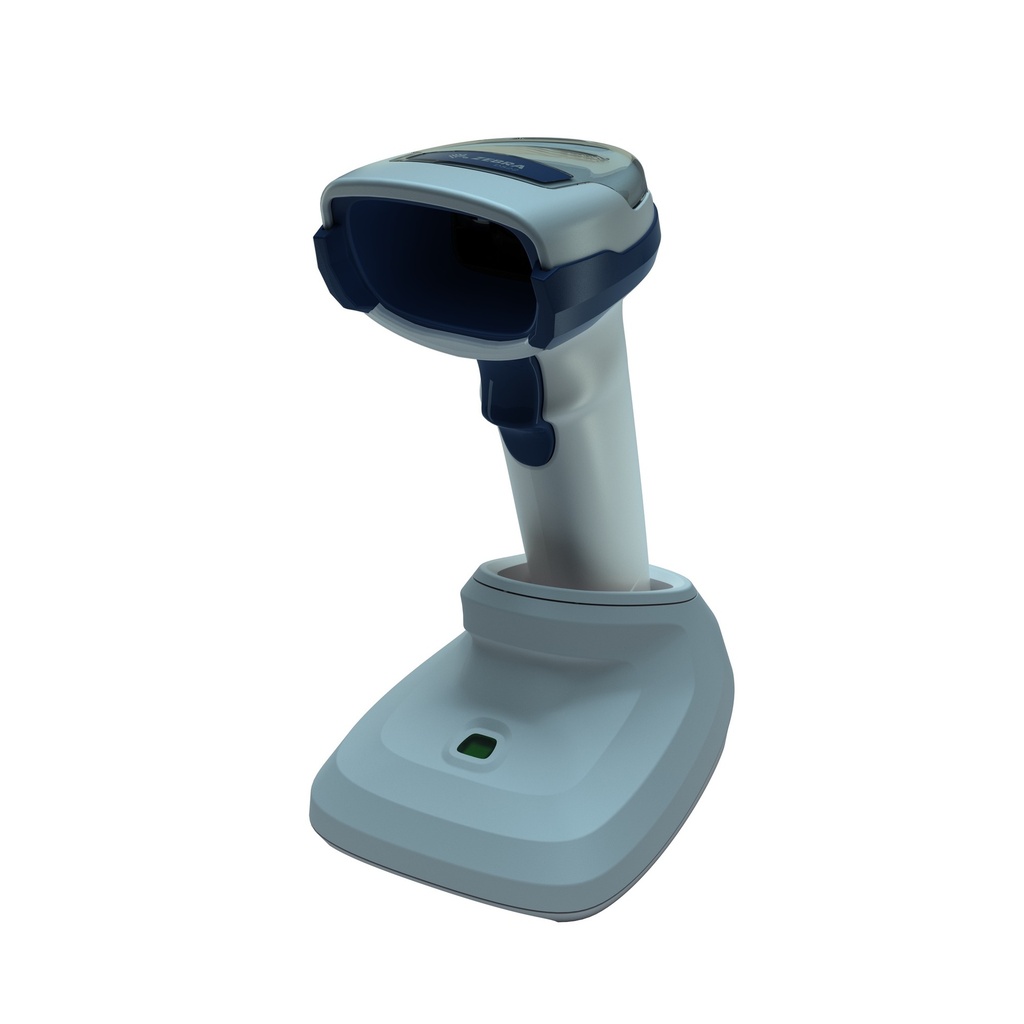

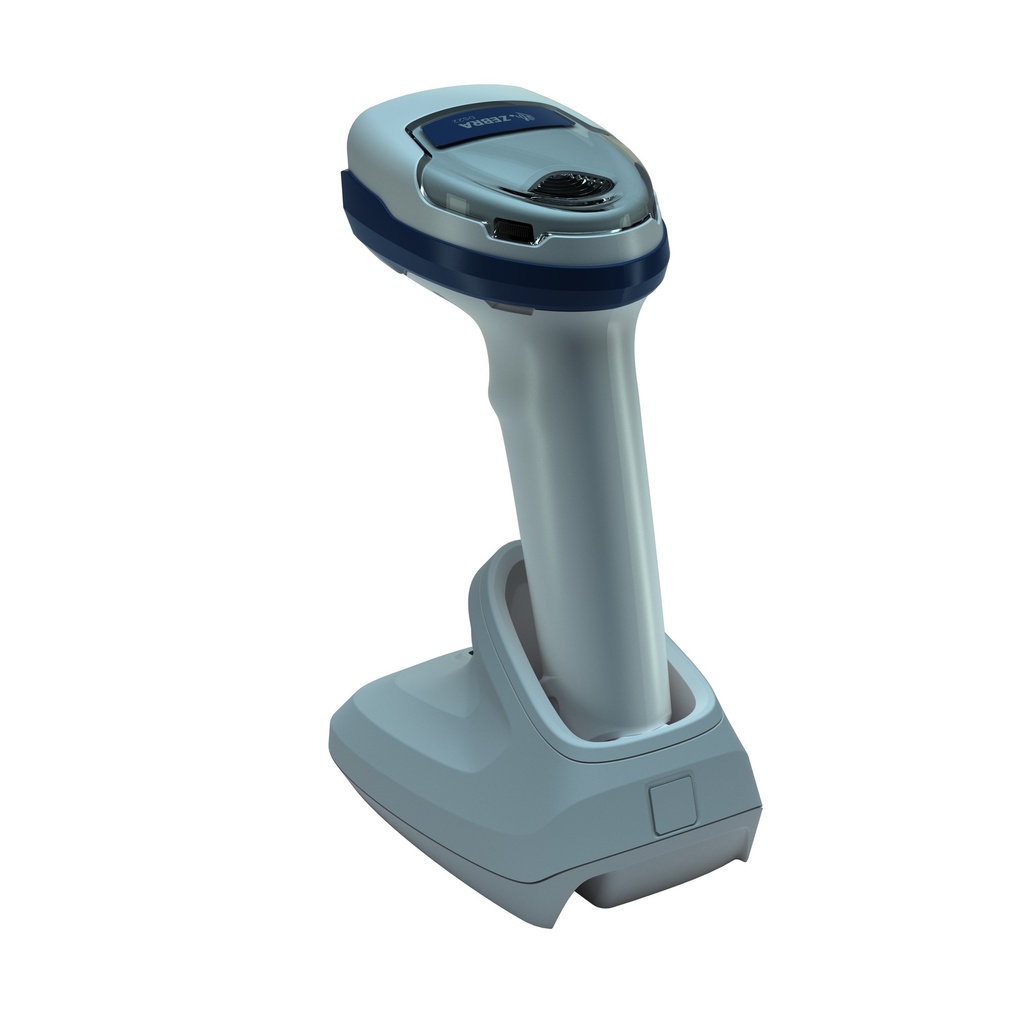

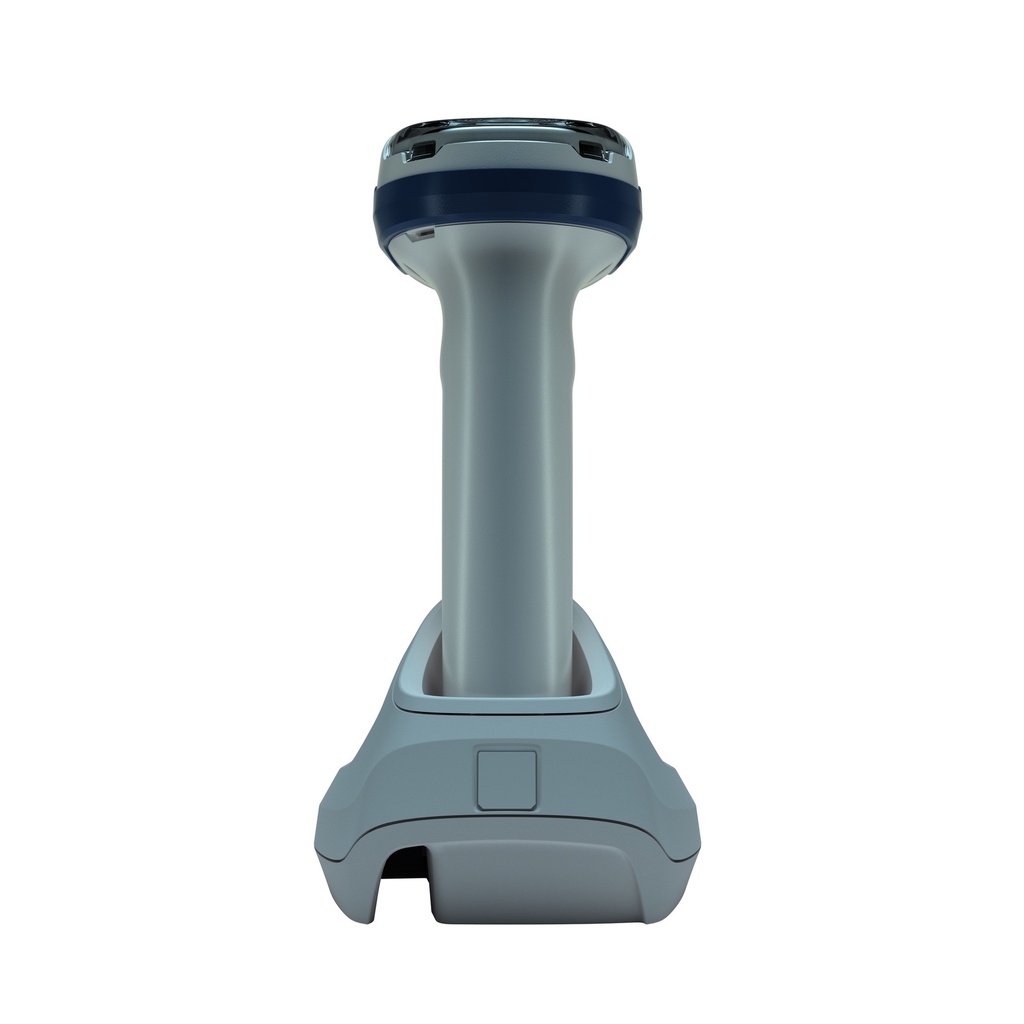

Supplied as a kit with a USB display stand that doubles as a charger and a hands-free holder.

Highlights

  • Bluetooth, range up to 100 m
  • 2400 mAh battery, 14 hours’ battery life
  • 1D/2D scanning and on-screen codes
  • USB kit with display/charging stand
  • Ready to use with no setup required

Ideal for : Checkouts, mobile payment collection, shops, collection points.

Technical specifications

Scanning
TypeHandheld bar code reader
Scanner type1D/2D
Sensor typeLED
Linear (1D) barcodes supportedCodabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Interleaved 2 of 5, Plessey, U.P.C.
2D (matrix & stacked) barcodes supportedAztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
Optical sensor resolution (W x H)640 x 480 pixels
Wavelength645 nm
Tilt reading angle-65 - 65°
Pitch reading angle-65 - 65°
Motion tolerance (cm/s)13
Ports & interfaces
Connectivity technologyWired & Wireless
Standard interfacesBluetooth, USB
USB version2.0
Bluetooth version4.0
Bluetooth Low Energy (BLE)Yes
Performance
International Protection (IP) codeIP42
LED indicatorsYes
Built-in displayNo
Product colourWhite
Power
Power source typeBattery, DC
Number of batteries supported1
Battery life84 h
Input voltage4.5 - 5.5 V
Weight & dimensions
Width66 mm
Depth90 mm
Height175 mm
Weight214 g
Packaging data
Charging baseYes
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 95%
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity2400 mAh
Technical details
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code84716070

Why R2Scan

Authorised reseller, stock in Belgium, device configuration and commissioning, technical support and in-house repair workshop.
