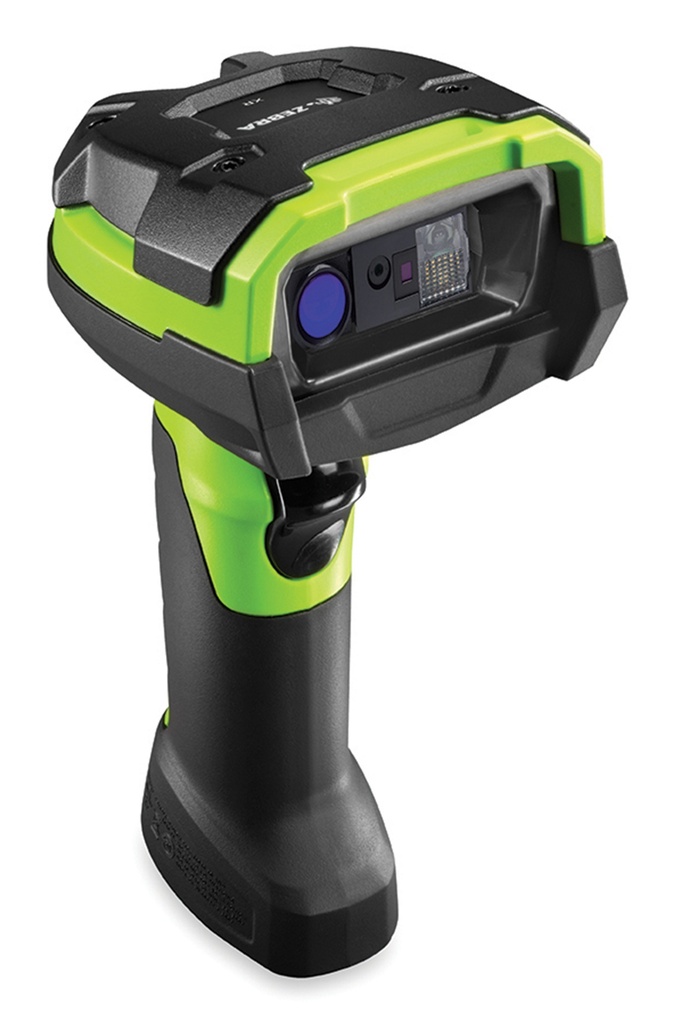

Zebra DS3608 – Ultra-rugged wired 1D/2D barcode scanner (Corded USB, Extra long)
The virtually indestructible wired scanner from the 3600 series, for warehouse and production environments.
Zebra barcode scanner DS3608, connection: Corded USB, range: Long range, USB.
Key specifications of this reference:
- Connection: Corded USB
- Range: Long range
- Keypad: Without keypad
This reference
- Manufacturer part no.
- DS3608-XR3RF50BZVW
- Brand
- Zebra
- Family
- Zebra DS3608
- Launched in
- 2016
Key specifications
- Type
- Handheld bar code reader
- Scanner type
- 1D/2D
- Sensor type
- Laser
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Optical sensor resolution (W x H)
- 1280 x 800 pixels
- Wavelength
- 520 nm
- Tilt reading angle
- -60 - 60°
- Pitch reading angle
- -60 - 60°
- Yaw reading angle
- -360 - 360°
- Connectivity technology
- Wired
- Standard interfaces
- Keyboard wedge, RS-232, USB
- Ethernet LAN
- Yes
- International Protection (IP) code
- IP67
Compatible accessories
The virtually indestructible wired scanner from the 3600 series, for warehouse and production environments.
The Zebra DS3608 is part of the ultra-rugged 3600 series: it can withstand drops of 2.4 m onto concrete, 5,000 tumbles, meets IP67 standards and is suitable for use in cold stores. It reads any 1D or 2D barcode, even if it is covered in plastic film, dirty or poorly printed.
A choice of three reach options: ER (Extended Range) up to 21 m, XR (Extra Range) up to 30 m for the tallest racking systems, with an optional vibration motor for noisy environments.
Highlights
- Extremely robust: withstands drops from 2.4 m, IP67, -30 °C
- Extended range ER (21 m) or XR (30 m)
- 1D/2D scanning through plastic wrap, dirty, damaged
- USB and RS-232 interfaces, and keyboards are auto-detected
- Optional vibrating alert for noisy areas
Ideal for : Warehouses, loading bays, production areas, cold stores, yards.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Wavelength | 520 nm |
| Tilt reading angle | -60 - 60° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -360 - 360° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | Keyboard wedge, RS-232, USB |
| Ethernet LAN | Yes |
| Performance | |
| International Protection (IP) code | IP67 |
| Protection features | Water resistant |
| LED indicators | Yes |
| Print contrast | 25% |
| Product colour | Black, Green |
| Programming function | Yes |
| Power | |
| Power source type | Battery |
| Weight & dimensions | |
| Width | 132 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 308 g |
| Packaging data | |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Drop resistance | 2.4 m |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Technical details | |
| Compliance certificates | RoHS |
