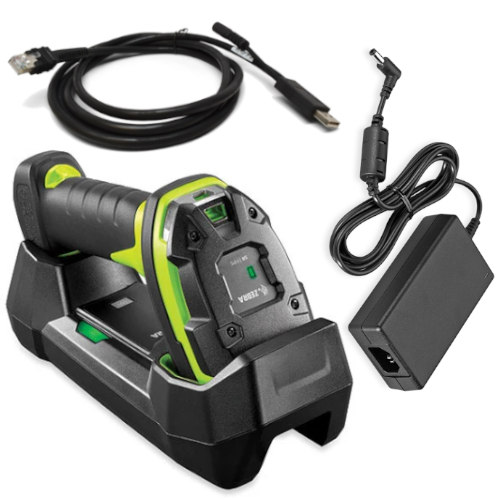

Zebra DS3678 – Ultra-rugged Bluetooth 1D/2D barcode scanner (Extended, Vibration motor)
The DS3608 wireless model: Bluetooth, a robust, waterproof base and a smart battery.
Zebra DS3678-XR Rugged Industrial, Manufacturing, Warehouse, Inventory, Self-checkout, Outdoor Barcode Scanner Kit - Wireless Connectivity - Industrial Green - 32 m Scan Distance - 1D, 2D - Extended Range - Laser - Imager - Bluetooth - USB - IP65, IP68
Key specifications of this reference:
- Connection: Bluetooth (cordless)
- Range: Medium
- Keypad: Without keypad
- Colour: Industrial green
- Ships with: USB charging cradle
This reference
- Manufacturer part no.
- DS3678-ER3U42A2SVW
- EAN
- 8596375044951
- Brand
- Zebra
- Family
- Zebra DS3678
- Launched in
- 2016
Key specifications
- Type
- Handheld bar code reader
- Optical sensor resolution
- 1280 pixels
- Scanner type
- 1D/2D
- Sensor type
- Laser
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C.
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Wavelength
- 655 nm
- Tilt reading angle
- -65 - 65°
- Pitch reading angle
- -65 - 65°
- Yaw reading angle
- -45 - 45°
- Connectivity technology
- Wired & Wireless
- Standard interfaces
- RS-232, USB, Keyboard wedge
- Wireless range
- 100 m
- Bluetooth version
- 4.0
Compatible accessories
The DS3608 wireless model: Bluetooth, a robust, waterproof base and a smart battery.
The Zebra DS3678 offers the freedom of Bluetooth combined with the robustness of the 3600 series: withstands drops from 2.4 metres, IP67-rated, and suitable for cold storage. Its sealed charging cradle can withstand the same conditions, and the Wi-Fi Friendly mode prevents any interference with your network.
ER (21 m), XR (30 m) and high-performance HP versions, featuring a display and keypad for entering quantities directly on the scanner. Supplied with a standard USB docking station.
Highlights
- Bluetooth, Wi-Fi-friendly mode
- Extremely robust: withstands drops from 2.4 m, IP67
- ER, XR or HP range (screen + keyboard)
- Waterproof charging base included
- PowerPrecision+ Smart Battery
Ideal for : Warehouses, quays, yards, production areas, cold stores.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Optical sensor resolution | 1280 pixels |
| Scanner type | 1D/2D |
| Sensor type | Laser |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 655 nm |
| Tilt reading angle | -65 - 65° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -45 - 45° |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Ethernet LAN | Yes |
| Performance | |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Shock resistant, Water resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Programming function | Yes |
| Power | |
| Power source type | Battery |
| Number of reads per charge | 70000 |
| Weight & dimensions | |
| Width | 142 mm |
| Depth | 76 mm |
| Height | 185 mm |
| Weight | 436 g |
| Packaging data | |
| External power adapter | Yes |
| Cables included | USB |
| Charging base | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
