Zebra DS4608 – Wired 1D/2D/OCR barcode scanner (Standard)
The versatile scanner for business: 1D/2D barcodes, DotCode, and OCR-based ID documents.
Zebra barcode scanner DS4608, connection: Corded USB, range: Standard, colour black, connection: Corded USB.
Key specifications of this reference:
- Connection: Corded USB
- Range: Standard
- Keypad: Without keypad
- Colour: Black

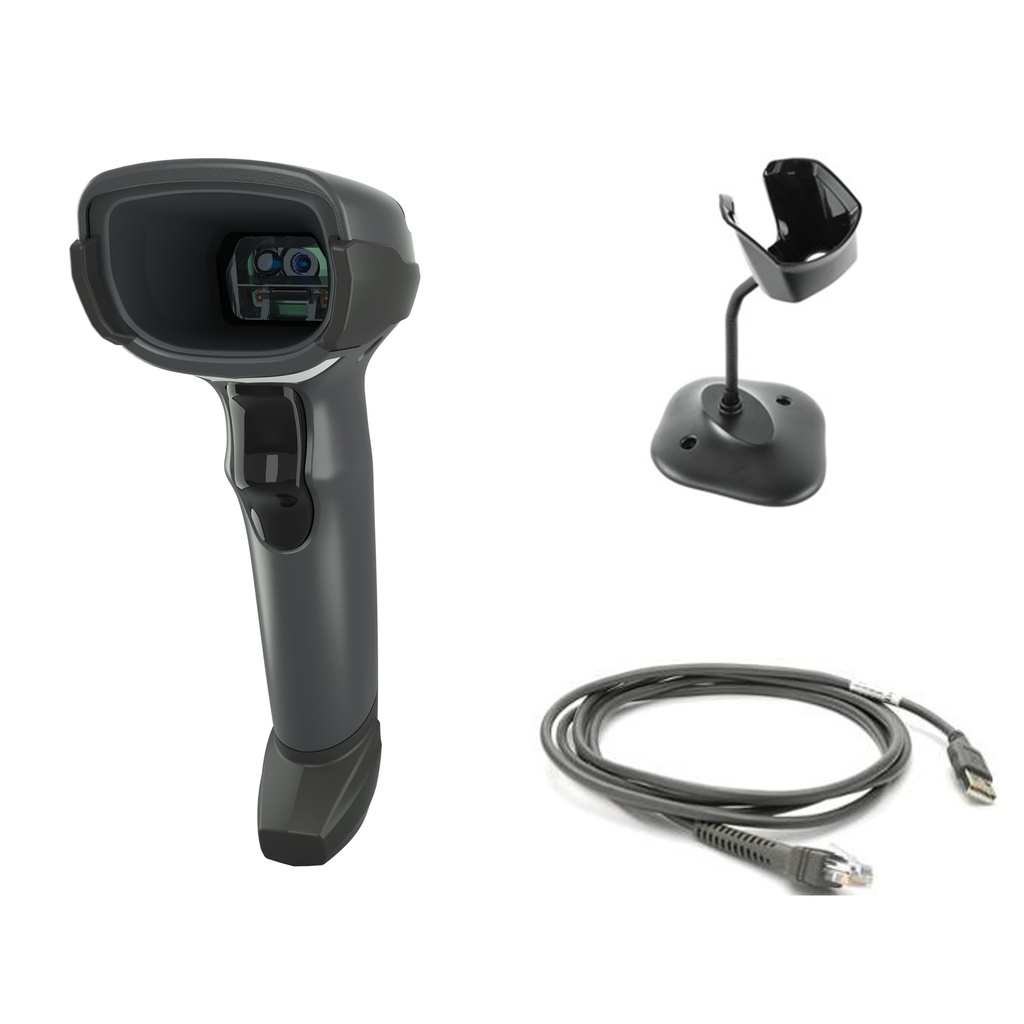

- Ships with: USB kit + stand
This reference
- Manufacturer part no.
- DS4608-SR7U2100SGW
- EAN
- 0751492927534
- Brand
- Zebra
- Family
- Zebra DS4608
- Launched in
- 2019
Key specifications
- Type
- Handheld bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, PDF417, UPC-E
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39
- Pitch reading angle
- -60 - 60°
- Connectivity technology
- Wired
- Standard interfaces
- USB
- International Protection (IP) code
- IP52
- LED indicators
- Yes
- Product colour
- Black
- Power source type
- USB
- Power consumption
- 340 mA
- Width
- 98 mm

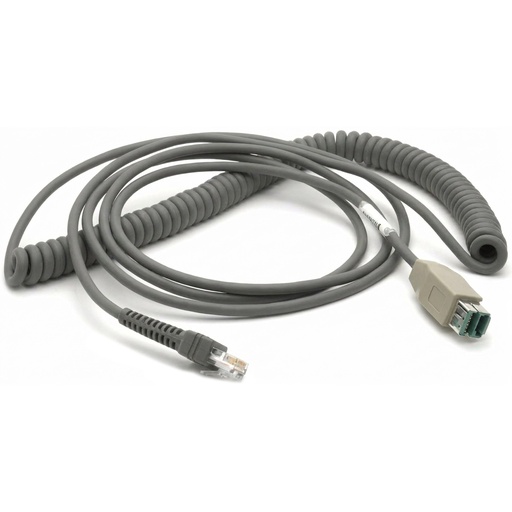

Compatible accessories
The versatile scanner for business: 1D/2D barcodes, DotCode, and OCR-based ID documents.
The Zebra DS4608 scans everything a shop might have on offer: 1D/2D codes on labels or mobile phones, DotCode barcodes through cellophane, tiny jewellery barcodes, and even identity documents using character recognition.

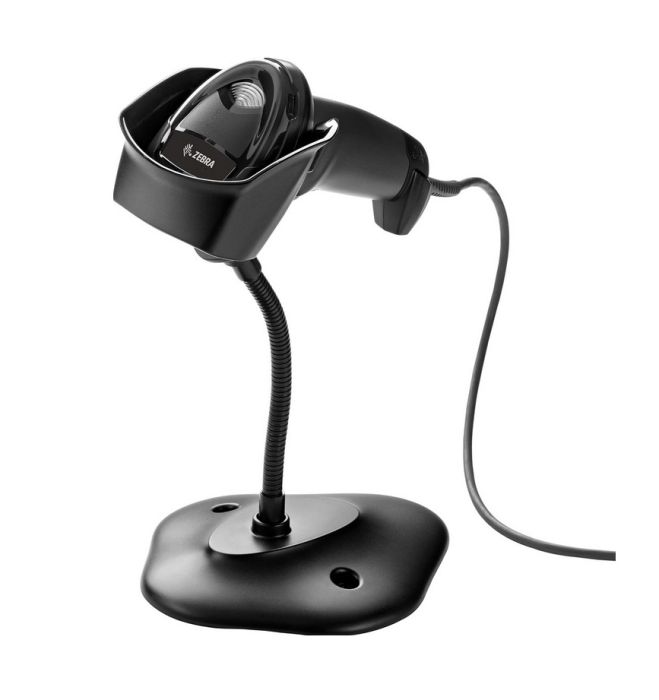

'Can't-miss' reach of up to 71 cm to reach heavy items at the back of the trolley. Supplied as a USB kit with a stand.
Highlights
- 1D/2D/OCR scanning, DotCode, miniature codes
- Reach up to 71 cm
- 800 MHz processor, PRZM technology
- USB kit with stand
- Windows, Android, iOS and Linux SDKs
Ideal for : Retail, self-checkout, pharmacies, jewellery shops, hospitality.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, PDF417, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code, TLC-39 |
| Pitch reading angle | -60 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| International Protection (IP) code | IP52 |
| LED indicators | Yes |
| Product colour | Black |
| Power | |
| Power source type | USB |
| Power consumption | 340 mA |
| Weight & dimensions | |
| Width | 98 mm |
| Depth | 165 mm |
| Height | 67 mm |
| Weight | 161.9 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
