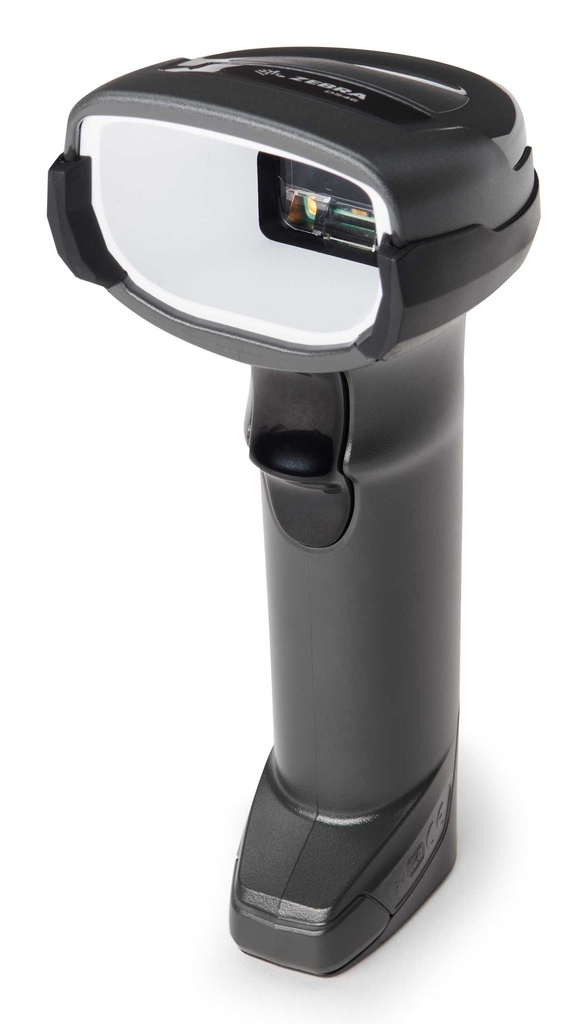

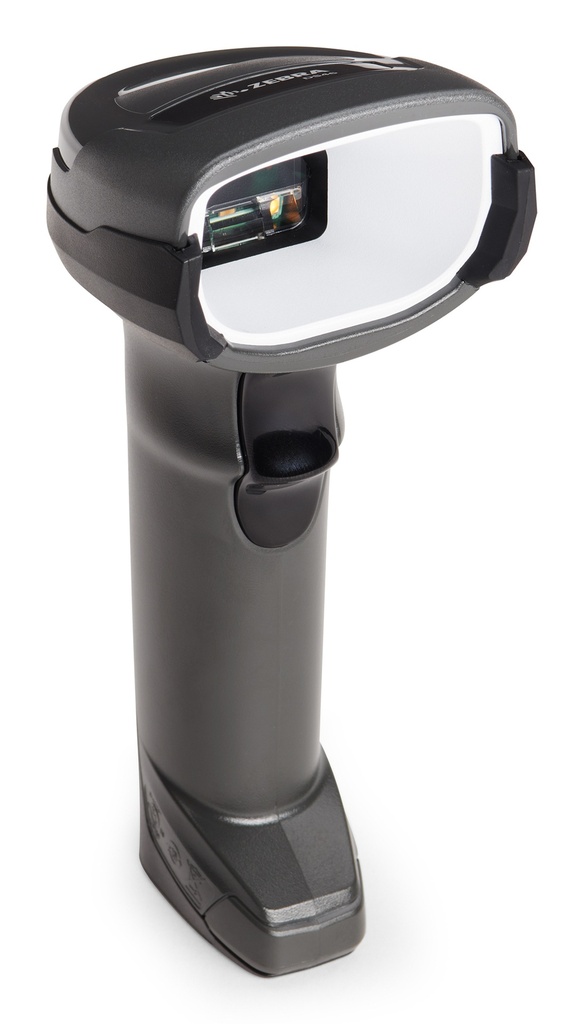

Zebra DS4678 – Bluetooth 1D/2D/OCR barcode scanner (Bluetooth)
The DS4608 Bluetooth version to speed up checkout and returns processing.
Zebra barcode scanner DS4678, connection: Bluetooth (cordless), range: Direct part marking (DPM), battery: Standard 2500 mAh, colour white, connection: Bluetooth (cordless), colour noir.
Key specifications of this reference:
- Connection: Bluetooth (cordless)
- Range: Direct part marking (DPM)
- Keypad: Without keypad
- Battery: Standard 2500 mAh
- Colour: White
This reference
- Manufacturer part no.
- DS4678-DPE0007VZRW
- Brand
- Zebra
- Family
- Zebra DS4678
- Launched in
- 2019
Key specifications
- Type
- Handheld bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Optical sensor resolution (W x H)
- 1280 x 800 pixels
- Horizontal field of view
- 31.6°
- Vertical field of view
- 22.6°
- Light levels (direct sunlight)
- 0 - 107000 lx
- Tilt reading angle
- 0 - 360°
- Pitch reading angle
- -60 - 60°
- Yaw reading angle
- -60 - 60°
- Connectivity technology
- Wireless
- Standard interfaces
- Bluetooth
Compatible accessories
The DS4608 Bluetooth version to speed up checkout and returns processing.
The Zebra DS4678 offers the versatile scanning capabilities of the DS4600 series (1D/2D barcodes, OCR, DotCode) wirelessly, with Bluetooth BLE and a standard USB charging dock.
It enables shop assistants to reach bulky items in the trolley and to process returns or loyalty scheme transactions directly on the shelf.
Highlights
- Bluetooth BLE
- 1D/2D/OCR scanning
- USB charging dock included
- Replaceable battery
- DataCapture DNA management tools
Ideal for : Retail, checkouts, customer service, pharmacies.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN 128, EAN 2, EAN 5, EAN-13, EAN-8, GS1 DataBar, MSI-Plessey, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1 |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 31.6° |
| Vertical field of view | 22.6° |
| Light levels (direct sunlight) | 0 - 107000 lx |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | -60 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wireless |
| Standard interfaces | Bluetooth |
| Bluetooth version | 5.2 |
| Bluetooth Low Energy (BLE) | Yes |
| Performance | |
| International Protection (IP) code | IP52 |
| LED indicators | Yes |
| Image formats supported | BMP, JPEG, TIFF |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| Product colour | Black |
| Vibration function | Yes |
| Power | |
| Power source type | Battery |
| Number of reads per charge | 50000 |
| Charging time | 2.25 h |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 225 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Drop resistance | 1.8 m |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2500 mAh |
| Technical details | |
| Warranty period | 3 year(s) |
| Compliance certificates | Federal Communications Commission (FCC), Trade Agreements Act (TAA) |
