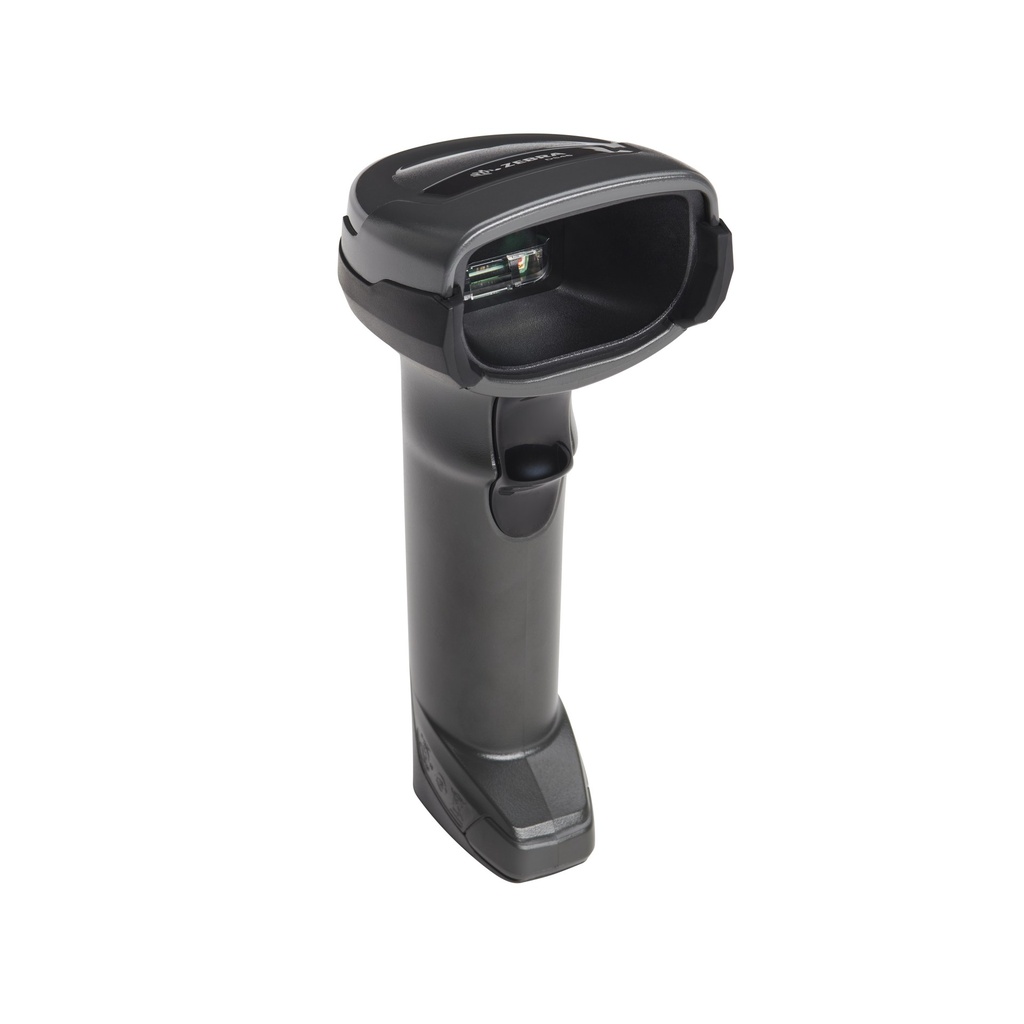

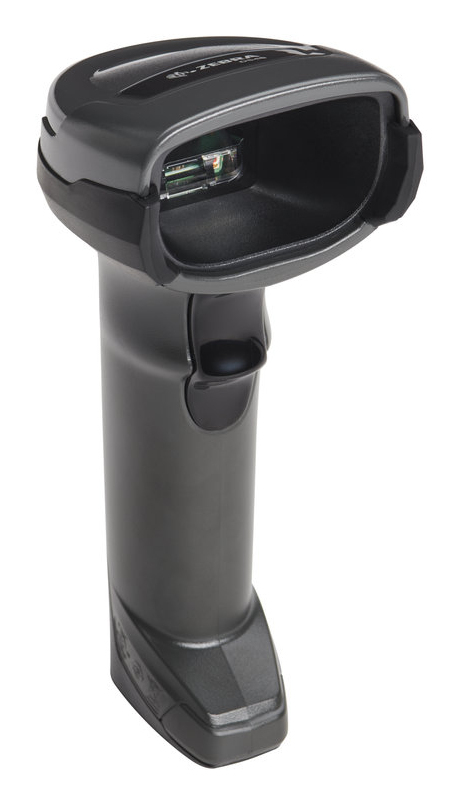

Zebra DS4678 – Bluetooth 1D/2D/OCR barcode scanner (Bluetooth + Corded USB)
The DS4608 Bluetooth version to speed up checkout and returns processing.
Zebra barcode scanner DS4678, connection: Bluetooth (cordless), range: Standard, battery: Standard 2500 mAh, colour black, connection: Bluetooth (cordless), range: Direct part marking (DPM), colour noir.
Key specifications of this reference:
- Connection: Bluetooth (cordless)
- Range: Standard
- Keypad: Without keypad
- Battery: Standard 2500 mAh
- Colour: Black
- Ships with: Base included
This reference
- Manufacturer part no.
- DS4678-SR7U2100SFW
- EAN
- 4805388883735
- Brand
- Zebra
- Family
- Zebra DS4678
- Launched in
- 2019
Key specifications
- Type
- Handheld bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Optical sensor resolution (W x H)
- 1280 x 800 pixels
- Horizontal field of view
- 36.1°
- Vertical field of view
- 22.6°
- Wavelength
- 617 nm
- Connectivity technology
- Wired
- Standard interfaces
- USB
- International Protection (IP) code
- IP52
- Product colour
- Black
- Power source type
- USB
Compatible accessories
The DS4608 Bluetooth version to speed up checkout and returns processing.
The Zebra DS4678 offers the versatile scanning capabilities of the DS4600 series (1D/2D barcodes, OCR, DotCode) wirelessly, with Bluetooth BLE and a standard USB charging dock.
It enables shop assistants to reach bulky items in the trolley and to process returns or loyalty scheme transactions directly on the shelf.
Highlights
- Bluetooth BLE
- 1D/2D/OCR scanning
- USB charging dock included
- Replaceable battery
- DataCapture DNA management tools
Ideal for : Retail, checkouts, customer service, pharmacies.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Horizontal field of view | 36.1° |
| Vertical field of view | 22.6° |
| Wavelength | 617 nm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Power | |
| Power source type | USB |
| Weight & dimensions | |
| Width | 67 mm |
| Depth | 98 mm |
| Height | 165 mm |
| Weight | 161.9 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
