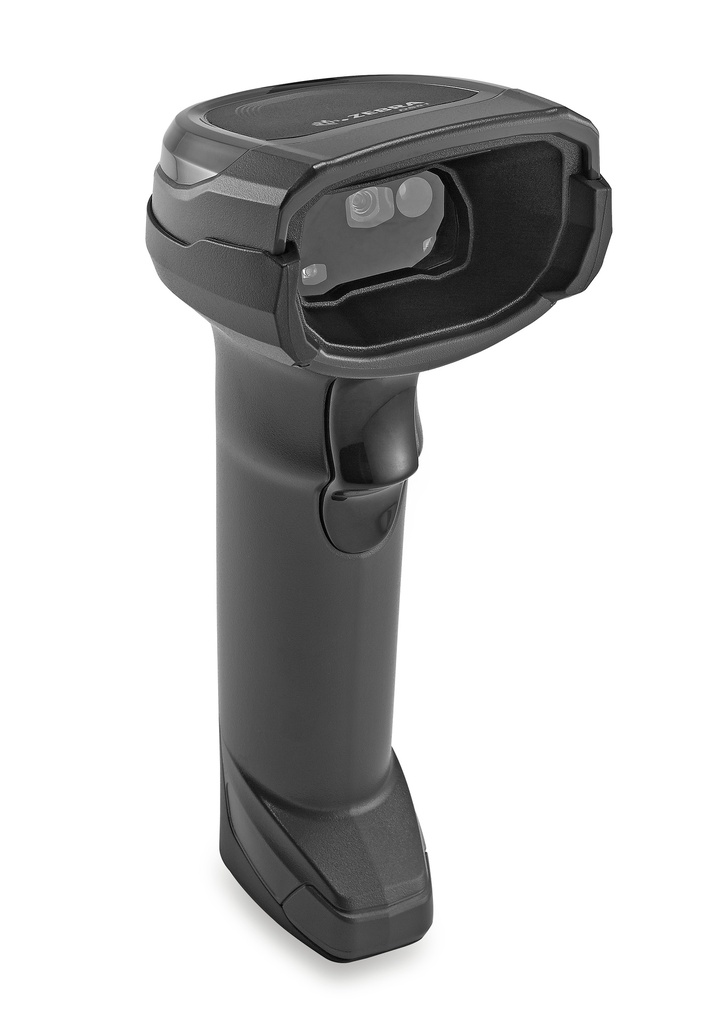

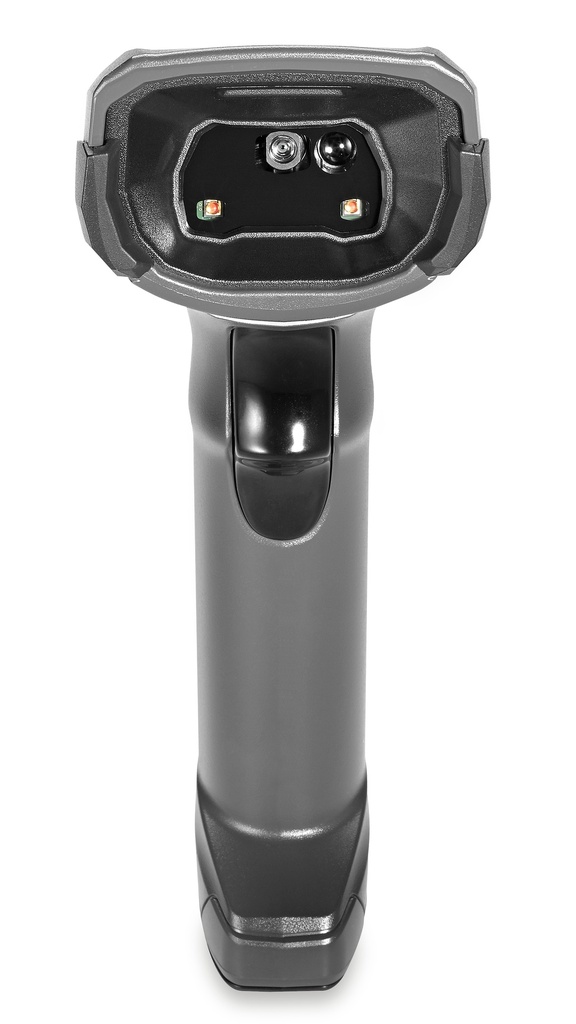

Zebra DS8108 – Premium wired 1D/2D barcode scanner
The DS8108: Zebra’s premium point-of-sale scanner, available in a disinfectable healthcare version.
Zebra barcode scanner DS8108, connection: Corded USB, range: Standard, colour black, connection: Corded USB, range: Standard, colour noir.
Key specifications of this reference:
- Scan range: Standard
- Connection: Corded USB
- Range: Standard
- Keypad: Without keypad
- Colour: Black
This reference
- Manufacturer part no.
- DS8108-SR00007ZZWW
- EAN
- 8596375046702
- Brand
- Zebra
- Family
- Zebra DS8108
- Launched in
- 2017
Key specifications
- Type
- Handheld bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Wavelength
- 617 nm
- Tilt reading angle
- 0 - 360°
- Pitch reading angle
- 0 - 60°
- Yaw reading angle
- 0 - 60°
- Connectivity technology
- Wired
- Standard interfaces
- RS-232, USB, Keyboard wedge
- PC connection
- RS-232/USB
- International Protection (IP) code
- IP42
- Product colour
- Black
Compatible accessories
The DS8108: Zebra’s premium point-of-sale scanner, available in a disinfectable healthcare version.
The Zebra DS8108 is the top-of-the-range corded scanner for the retail sector: ultra-fast capture of 1D/2D barcodes, even on screens, damaged barcodes or those under plastic film; extended reach to access the back of the trolley; and a 360° status light.
White DS8108-HC version, resistant to disinfectants, for the healthcare sector. USB kits with or without a holder, ‘stand’ kits for hands-free scanning.
Highlights
- Ultra-fast 1D/2D scanning, on-screen codes
- Extended reach to the back of the trolley
- 360° status indicator
- Healthcare-grade, disinfectable version (HC)
- USB kit, optional mount
Ideal for : Retail, pharmacies, healthcare.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 617 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 60° |
| Yaw reading angle | 0 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| PC connection | RS-232/USB |
| Performance | |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Power | |
| Input voltage | 5 V |
| Power consumption | 450 mA |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 154 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
