Zebra
Premium Bluetooth 1D/2D barcode scanner

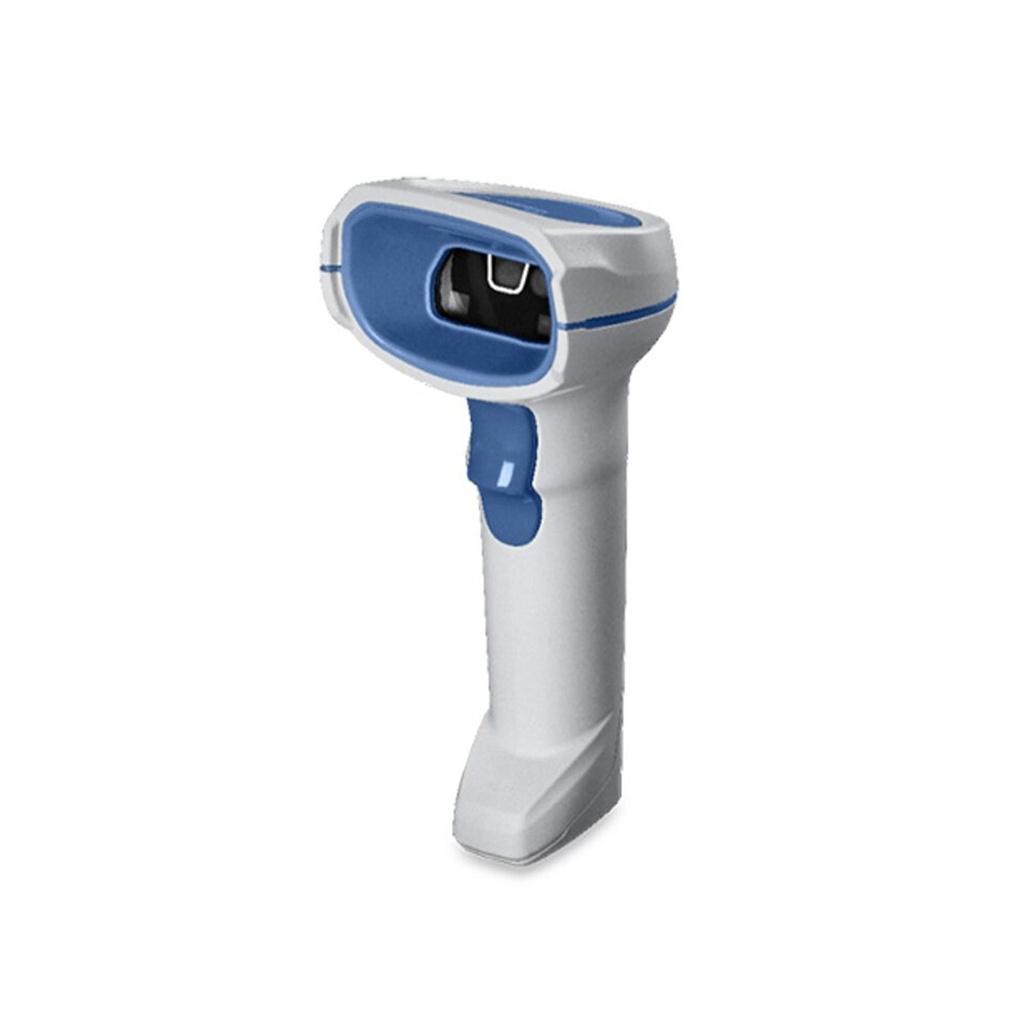

Zebra DS8178 – Premium Bluetooth 1D/2D barcode scanner (Bluetooth + Corded USB, USB charging cradle, White)
The DS8178: the wireless version of the DS8108, complete with a presentation stand and a PowerPrecision+ battery.
Manufacturer part no. DS8178-HCBU210MP5W
· EAN 5706998265173
· Launched in 2017
In stock
Delivery in 2 to 3 days
Zebra barcode scanner DS8178, connection: Bluetooth (cordless), range: Standard, colour white, connection: Bluetooth (cordless).
Key specifications of this reference:
- Connection: Bluetooth (cordless)
- Range: Standard
- Keypad: Without keypad
- Colour: White
- Ships with: Base de présentation (aimant)
This reference
- Manufacturer part no.
- DS8178-HCBU210MP5W
- EAN
- 5706998265173
- Brand
- Zebra
- Family
- Zebra DS8178
- Launched in
- 2017
Key specifications
- Type
- Handheld bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C.
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Wavelength
- 528 nm
- Tilt reading angle
- 0 - 360°
- Pitch reading angle
- 0 - 60°
- Yaw reading angle
- 0 - 60°
- Connectivity technology
- Wired & Wireless
- Standard interfaces
- RS-232, USB, Keyboard wedge
- Wireless range
- 100 m
- Bluetooth version
- 4.0
- Bluetooth Low Energy (BLE)
- Yes
Compatible accessories
Battery
Zebra BATTERY PACKLITHIUM ION2500MAHDS8178
65.00 €
Power supply / cable
Zebra CABLE - RS232: DB9 FEMALE CONNECTOR 7 F
33.00 €
Power supply / cable
Zebra CABLE RS232 7FT (2M)ST NIXDORF CABL
17.00 €
Power supply / cable
Zebra CBL: RS232 (NIXDORF 5V) 9FT CL
30.00 €
Power supply / cable
Zebra CBL ASSY:UNIV STYLE3 USB 7FT DURA GRY
22.00 €
Power supply / cable
Zebra CABLE - SHIELDED USB: SERIES A CONNECTOR
22.00 €
Power supply / cable
Zebra connector: Connection cable, USB, shielded, length: 2 m, straight, power supply
33.00 €
Power supply / cable

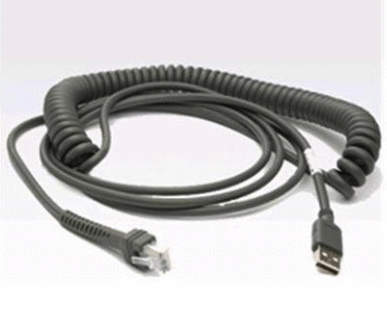

Zebra SHIELDED USB CABLE 2.8M STRGHT
41.00 €
Power supply / cable
Zebra connection cable, USB
29.00 €
Power supply / cable
Zebra CABLE - SHIELDED USB: SERIES A CONNECTOR
54.00 €
Cradle / charger
Zebra CRADLE CR8178 PRESENTATION BT FIPS BLK
189.00 €
Cradle / charger
Zebra CRADLE.CR8178.STANDARD.BT.FIPS.MIDNIGHT
189.00 €
Cradle / charger

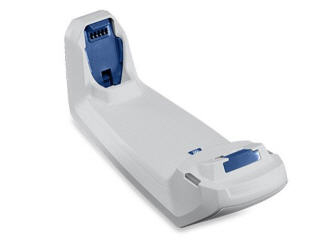

Zebra DS8178: STANDARD CRADLE BT FIPS HC WHITE
199.00 €
The DS8178: the wireless version of the DS8108, complete with a presentation stand and a PowerPrecision+ battery.
The Zebra DS8178 offers the performance of the DS8108 via Bluetooth: a standard dock or presentation dock that acts as a hands-free stand, a PowerPrecision+ smart battery, and Wi-Fi Friendly mode.
Healthcare (HC) versions that can be disinfected and FIPS versions for data security.
Highlights
- Bluetooth, standard or display dock
- PowerPrecision+ battery
- Ultra-fast 1D/2D scanning
- Healthcare version – suitable for disinfection
- FIPS versions
Ideal for : Retail, healthcare, hospitality.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength | 528 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 60° |
| Yaw reading angle | 0 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| PC connection | RS-232/USB |
| Performance | |
| International Protection (IP) code | IP42 |
| Product colour | White |
| Power | |
| Power source type | Battery |
| Battery type | Built-in battery |
| Number of batteries supported | 1 |
| Number of reads per charge | 65000 |
| Battery life | 83 h |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 235 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2500 mAh |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
Why R2Scan
Authorised reseller, stock in Belgium, device configuration and commissioning, technical support and in-house repair workshop.
