Zebra
Bluetooth 1D/2D barcode scanner
Zebra DS8288 – Bluetooth 1D/2D barcode scanner (Bluetooth + Corded USB, Base included)
The DS8288: a wireless 1D/2D scanner with a vibrating alert and FIPS security.
Manufacturer part no. DS8288-SR4U2104SVW
· Launched in 2021
Available on order
Delivery in 2 to 3 days
Zebra barcode scanner DS8288, connection: Bluetooth (cordless), range: Standard, colour black, connection: Bluetooth (cordless), range: Standard, colour noir.
Key specifications of this reference:
- Connection: Bluetooth (cordless)
- Range: Standard
- Keypad: Without keypad
- Colour: Black
- Ships with: Base included
This reference
- Manufacturer part no.
- DS8288-SR4U2104SVW
- Brand
- Zebra
- Family
- Zebra DS8288
- Launched in
- 2021
Key specifications
- Type
- Handheld bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, GS1 Composite, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), IATA, Industrial 2 of 5, Interleaved 2 of 5, ISBN, ISBT 128, ISSN, ITF-14, ITF-6, MSI, MSI-Plessey, Pharmacode, Plessey, Telepen, Trioptic, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1, EAN-8, EAN-13
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, SecurPharm, TLC-39
- Optical sensor resolution (W x H)
- 1600 x 1200 pixels
- Horizontal field of view
- 48°
- Vertical field of view
- 36°
- Light levels (direct sunlight)
- 0 - 107.6 lx
- Pitch reading angle
- 0 - 60°
- Connectivity technology
- Wired & Wireless
- Standard interfaces
- RS-232, USB
- Bluetooth version
- 5.2
- Bluetooth Low Energy (BLE)
- Yes
Compatible accessories
The DS8288: a wireless 1D/2D scanner with a vibrating alert and FIPS security.
The Zebra DS8288 is a standard-range wireless 1D/2D scanner, featuring a vibration motor to confirm scans in noisy environments and FIPS-compliant Bluetooth encryption.

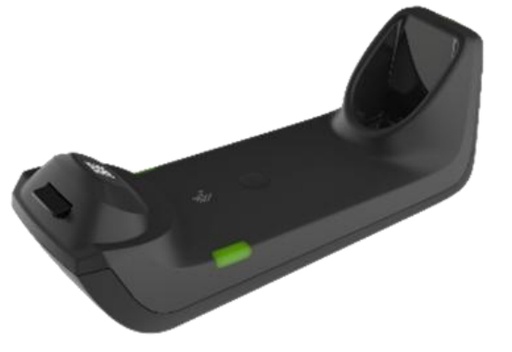

Supplied as a kit with a USB charging base and stand, depending on the product code.
Highlights
- Bluetooth, FIPS encryption
- Confirmation buzzer
- 1D/2D scanning
- Kit with USB dock
- Optional mount
Ideal for : Retail, pharmacies, noisy environments.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | AIM-128, Codabar, Code 11, Code 128, Code 39, Code 93, GS1 Composite, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, GS1 Databar RSS14, GS1-128 (UCC/EAN-128), IATA, Industrial 2 of 5, Interleaved 2 of 5, ISBN, ISBT 128, ISSN, ITF-14, ITF-6, MSI, MSI-Plessey, Pharmacode, Plessey, Telepen, Trioptic, U.P.C., UPC-A, UPC-E, UPC-E0, UPC-E1, EAN-8, EAN-13 |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, SecurPharm, TLC-39 |
| Optical sensor resolution (W x H) | 1600 x 1200 pixels |
| Horizontal field of view | 48° |
| Vertical field of view | 36° |
| Light levels (direct sunlight) | 0 - 107.6 lx |
| Pitch reading angle | 0 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | RS-232, USB |
| Bluetooth version | 5.2 |
| Bluetooth Low Energy (BLE) | Yes |
| Performance | |
| International Protection (IP) code | IP52 |
| Ambient lighting | Yes |
| Print contrast | 16% |
| Product colour | Black |
| Power | |
| Power source type | DC |
| Battery type | Built-in battery |
| Charging port type | USB Type-C |
| Battery life | 108 h |
| Charging time | 6.7 h |
| Weight & dimensions | |
| Weight | 176.5 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Drop resistance | 3 m |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3500 mAh |
Why R2Scan
Authorised reseller, stock in Belgium, device configuration and commissioning, technical support and in-house repair workshop.
