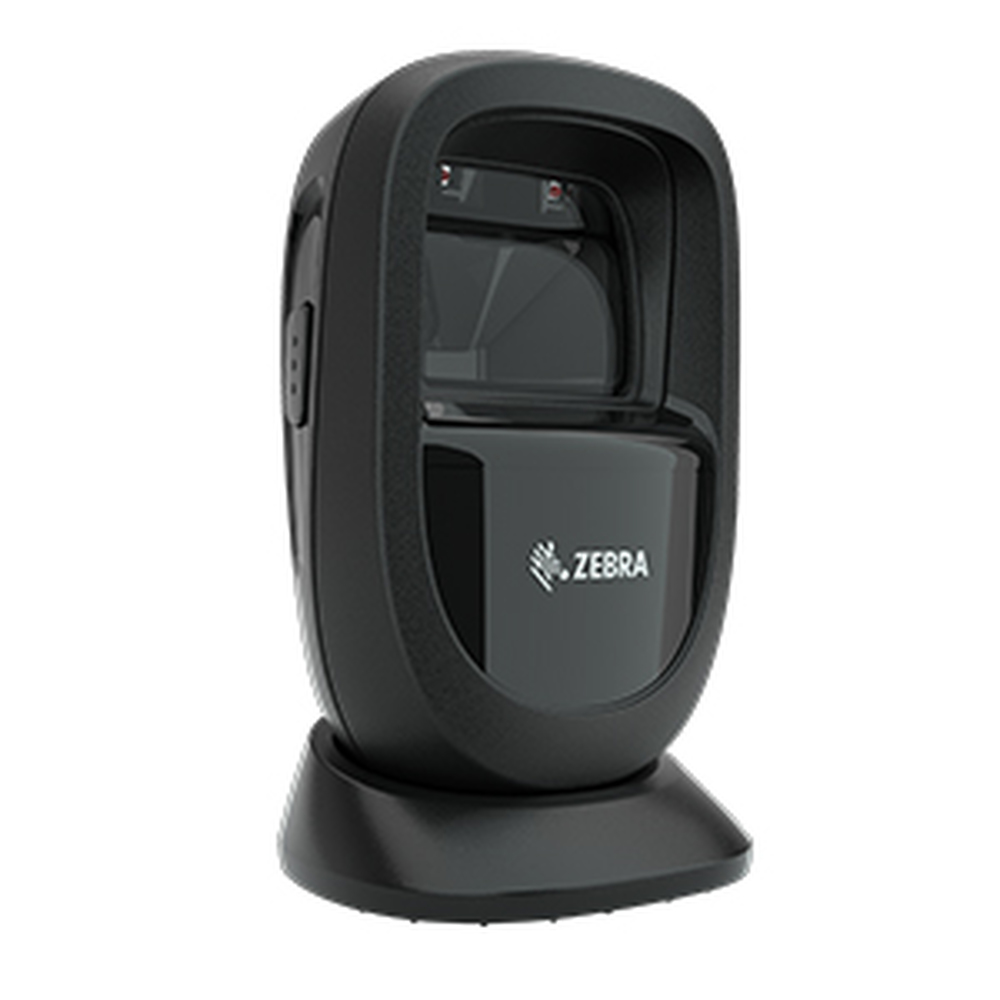

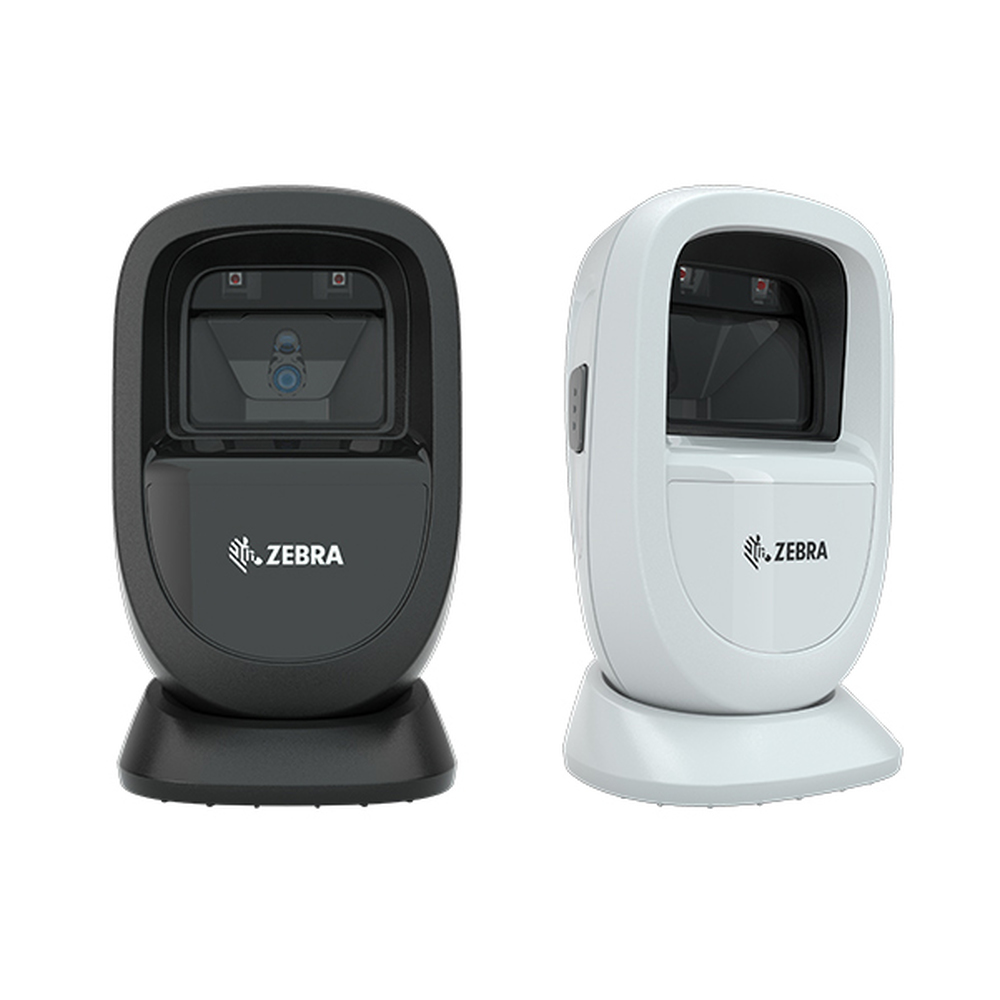

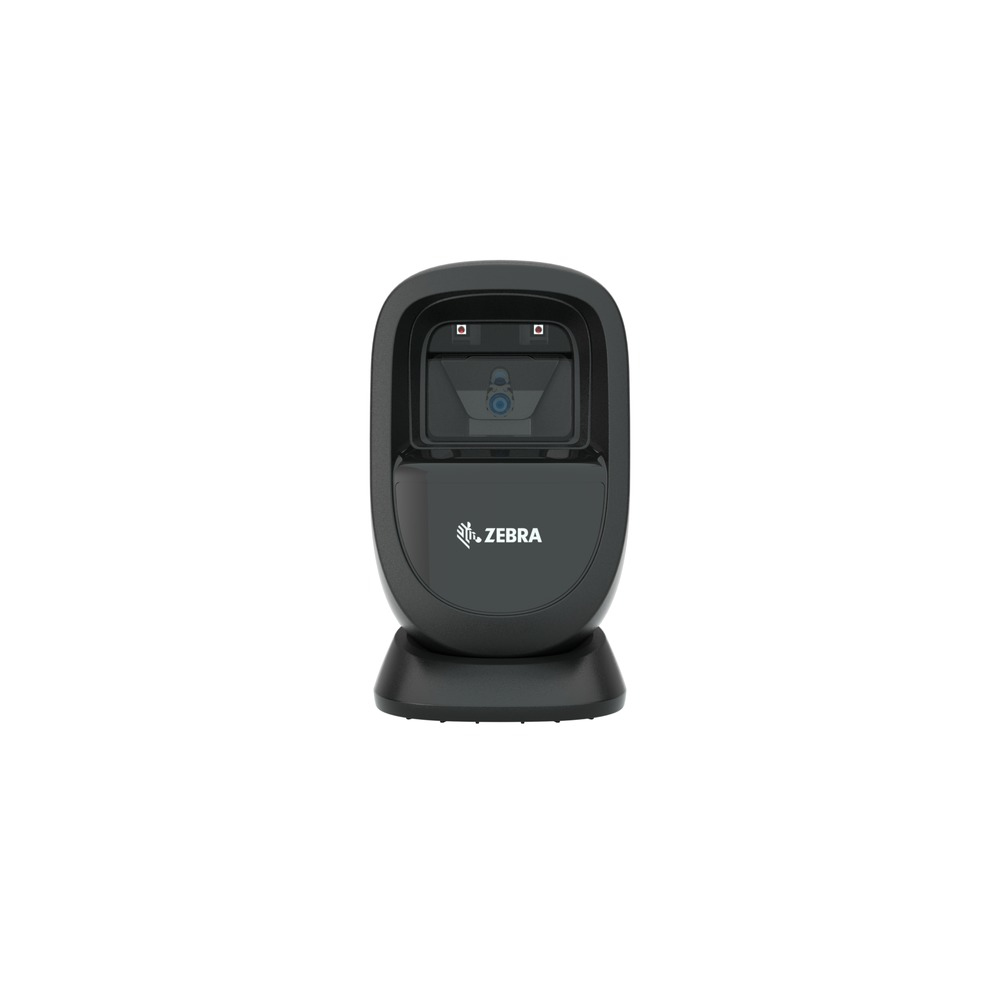

Zebra DS9308 – 1D/2D barcode scanner
The compact presentation scanner that fits anywhere, scans anything and can withstand the knocks of everyday life.
Zebra presentation scanner DS9308, connection: Corded USB, range: Standard, colour black.
Key specifications of this reference:
- Connection: Corded USB
- Range: Standard
- Keypad: Without keypad
- Colour: Black
This reference
- Manufacturer part no.
- DS9308-SR00004ZZWW
- EAN
- 8596375197923
- Brand
- Zebra
- Family
- Zebra DS9308
- Launched in
- 2019
Key specifications
- Type
- Fixed bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C.
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Optical sensor resolution (W x H)
- 1280 x 800 pixels
- Working distance
- 66 cm
- Light levels (direct sunlight)
- 0 - 107700 lx
- Pitch reading angle
- -60 - 60°
- Connectivity technology
- Wired
- Standard interfaces
- RS-232, USB
- International Protection (IP) code
- IP52
- Product colour
- Black
- Certification
- EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS

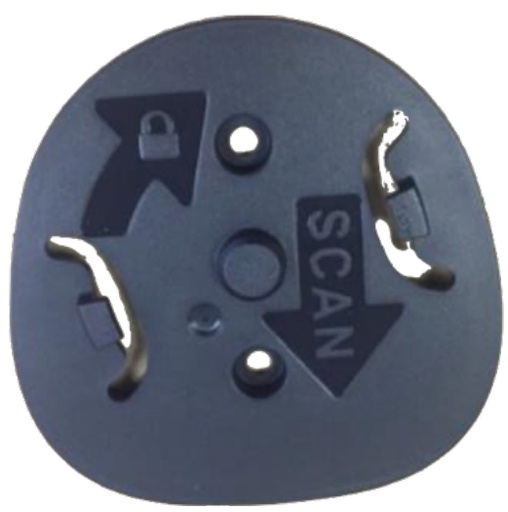

Compatible accessories
The compact presentation scanner that fits anywhere, scans anything and can withstand the knocks of everyday life.
The Zebra DS9308 is a compact and stylish hands-free scanner designed for counters where space is limited: shops, mini-markets, fast-food outlets and ticket offices. It scans 1D/2D codes very quickly, whether on paper or on a smartphone, as soon as the item is held up to the scanner window.
Resistant to drops, knocks and splashes, it is available as a USB kit or as a bare unit.
Highlights
- Compact; can be placed or mounted anywhere
- Fast 1D/2D scanning, on-screen codes
- Shock- and splash-resistant
- USB, RS-232, keyboard
- USB kit or scanner only
Ideal for : Convenience shops, fast-food outlets, chemists, ticket offices, self-service outlets.
Technical specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Working distance | 66 cm |
| Light levels (direct sunlight) | 0 - 107700 lx |
| Pitch reading angle | -60 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
| Performance | |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| Power | |
| Power source type | RS-232, USB |
| Input voltage | 5.5 V |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 83 mm |
| Height | 145 mm |
| Weight | 318 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
