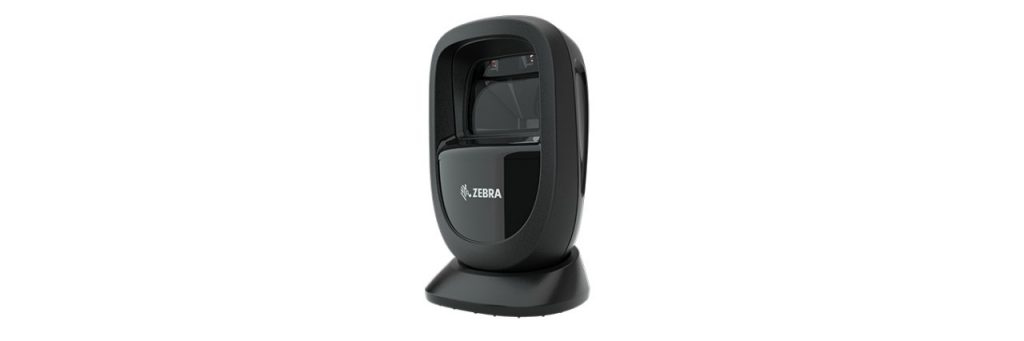

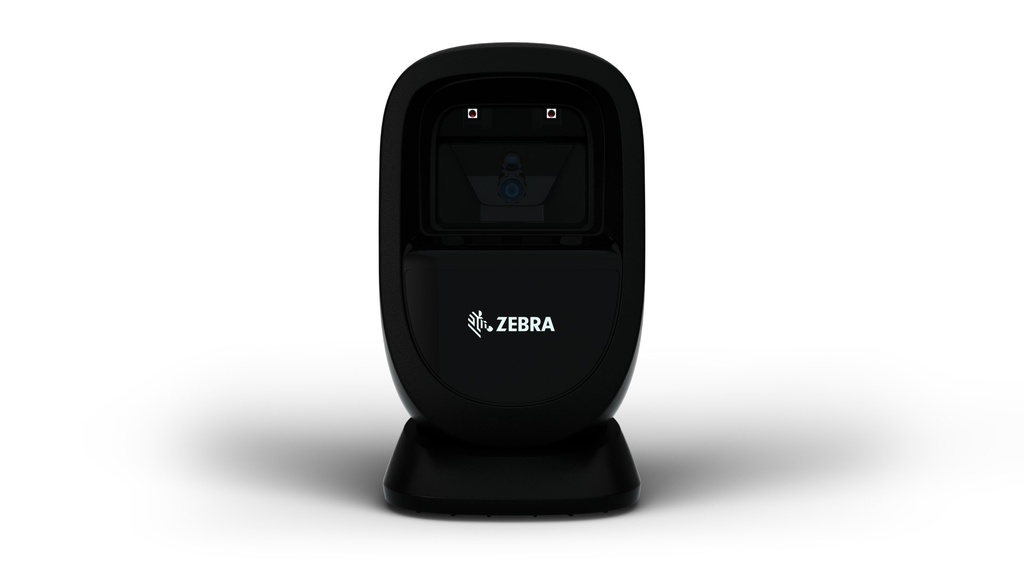

Zebra DS9308 – 1D/2D barcode scanner (Corded USB, Black)
The compact presentation scanner that fits anywhere, scans anything and can withstand the knocks of everyday life.
Zebra DS9308 Retail, Hospitality, Quick Service Restaurant (QSR), Transportation Desktop Barcode Scanner Kit - Cable Connectivity - Midnight Black - 223.52 mm Scan Distance - 1D, 2D - Imager - USB, EAS, Keyboard Wedge, Serial - IP52
Key specifications of this reference:
- Connection: Corded USB
- Range: Standard
- Keypad: Without keypad
- Colour: Black
- Ships with: USB kit
This reference
- Manufacturer part no.
- DS9308-SRD0004ZZWW
- EAN
- 8596375197985
- Brand
- Zebra
- Family
- Zebra DS9308
- Launched in
- 2019
Key specifications
- Type
- Fixed bar code reader
- Scanner type
- 1D/2D
- Sensor type
- LED
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C.
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
- Optical sensor resolution (W x H)
- 1280 x 800 pixels
- Working distance
- 66 cm
- Light levels (direct sunlight)
- 0 - 107700 lx
- Pitch reading angle
- -60 - 60°
- Connectivity technology
- Wired
- Standard interfaces
- RS-232, USB
- International Protection (IP) code
- IP52
- Product colour
- Black
- Certification
- EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS

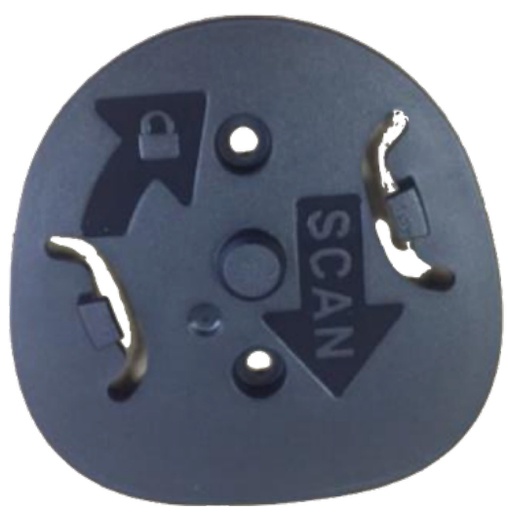

Compatible accessories
The compact presentation scanner that fits anywhere, scans anything and can withstand the knocks of everyday life.
The Zebra DS9308 is a compact and stylish hands-free scanner designed for counters where space is limited: shops, mini-markets, fast-food outlets and ticket offices. It scans 1D/2D codes very quickly, whether on paper or on a smartphone, as soon as the item is held up to the scanner window.
Resistant to drops, knocks and splashes, it is available as a USB kit or as a bare unit.
Highlights
- Compact; can be placed or mounted anywhere
- Fast 1D/2D scanning, on-screen codes
- Shock- and splash-resistant
- USB, RS-232, keyboard
- USB kit or scanner only
Ideal for : Convenience shops, fast-food outlets, chemists, ticket offices, self-service outlets.
Technical specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| Sensor type | LED |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Working distance | 66 cm |
| Light levels (direct sunlight) | 0 - 107700 lx |
| Pitch reading angle | -60 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
| Performance | |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| Power | |
| Power source type | RS-232, USB |
| Input voltage | 5.5 V |
| Weight & dimensions | |
| Width | 86 mm |
| Depth | 83 mm |
| Height | 145 mm |
| Weight | 318 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
