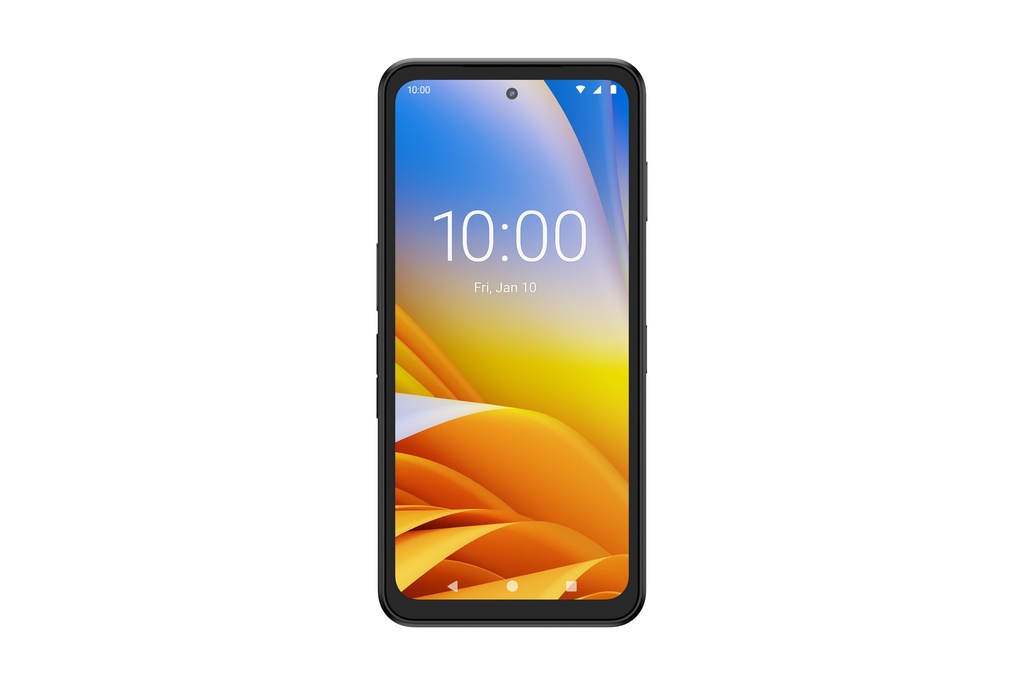

Zebra EM45 – 5G business smartphone (6.7", No scanner)
The Zebra enterprise smartphone: 5G, private 4G/5G network, secure Android and camera scanning.
Portable data collection device, screen size: 6.7" (17 cm), touch technology: capacitive, multi touch, resolution: 2400x1080 Pixel, micro SD-Slot, RFID (reader, UHF), Camera (50 MP), front camera (8 MP), brightness 450cd, connection: USB-C, Bluetooth, Wi-Fi (Wi-Fi 6E), SIM, 5G, Qualcomm Octa Core, 2.2 GHz, RAM: 8 GB, Flash: 128 GB, OS: Android (13), incl.: cable (USB-C), protection class: IP65, IP68, colour: black.
Key specifications of this reference:
- Network: Wi-Fi + 4G/5G
- Scan engine: No scanner (camera)
- Keypad: Touch
- Grip: Without grip
- Memory: 8 GB RAM / 128 GB
- Display: 6.7"
- Wi-Fi: Wi-Fi 6E
- RFID: Integrated UHF RFID reader
- Colour: Black
- Operating system: Android
- Regional reference: Europe/Asia
This reference
- Manufacturer part no.
- EM45B2-3T106B0-EA
- EAN
- 5715328245877
- Brand
- Zebra
- Family
- Zebra EM45
- Launched in
- 2024
Key specifications
- Display
- LED
- Display diagonal
- 17 cm (6.7")
- Display resolution
- 2400 x 1080 pixels
- Touchscreen
- Yes
- Touch technology
- Multi-touch
- Touchscreen type
- Capacitive
- Internal memory
- 8 GB
- Flash memory
- 128 GB
- Flash memory type
- UFS
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 2 TB
- Processor model
- 5430
- Processor frequency
- 2.2 GHz
- Processor family
- Qualcomm
Compatible accessories
The Zebra enterprise smartphone: 5G, private 4G/5G network, secure Android and camera scanning.
The Zebra EM45 is an enterprise smartphone: slim and stylish, yet managed, secure and supported as a business device. Public and private 5G, Wi-Fi, Bluetooth, NFC and USB-C.
Supplied as a kit, it is managed using Zebra DNA tools and is ideal for teams looking for a durable business phone without compromise.
Highlights
- 5G Sub-6 + 4G/5G private networks
- Secure Android, Zebra DNA
- Wi-Fi, Bluetooth, NFC, USB-C
- Sleek design, protective case available
- Supplied as a kit
Ideal for : Field managers, hospitality, retail, healthcare.
Technical specifications
| Display | |
|---|---|
| Display | LED |
| Display diagonal | 17 cm (6.7") |
| Display resolution | 2400 x 1080 pixels |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Capacitive |
| Memory | |
| Internal memory | 8 GB |
| Flash memory | 128 GB |
| Flash memory type | UFS |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
| Processor | |
| Processor model | 5430 |
| Processor frequency | 2.2 GHz |
| Processor family | Qualcomm |
| Number of cores | 8 |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Bluetooth Low Energy (BLE) | Yes |
| SIM card type | NanoSIM + eSIM |
| Data network | 4G, 5G |
| Security algorithms | 40-bit WEP, 104-bit WEP, AES-CCMP, EAP-AKA, EAP-GTC, EAP-PWD, EAP-SIM, EAP-TLS, EAP-TTLS, LEAP, PEAP, TKIP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal |
| Near Field Communication (NFC) | Yes |
| GPS Performance | |
| GPS (satellite) | Yes |
| Assisted GPS (A-GPS) | Yes |
| GLONASS | Yes |
| BeiDou | Yes |
| Galileo | Yes |
| Camera | |
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 50 MP |
| Rear camera aperture number | 1.9 |
| Front camera | Yes |
| Front camera resolution (numeric) | 8 MP |
| Front camera aperture number | 2 |
| Video capture resolution (max) | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| Audio | |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Speakers | stereo |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Performance | |
| Product colour | Black |
| RFID reader | Yes |
| Vibrating alert | Yes |
| International Protection (IP) code | IP65, IP68 |
| Drop proof | Yes |
| Drop proof | 1.5 cm |
| Sensors | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Proximity sensor | Yes |
| Magnetometer | Yes |
| Pressure sensor | Yes |
