Zebra
Ultra-rugged wired 1D barcode scanner

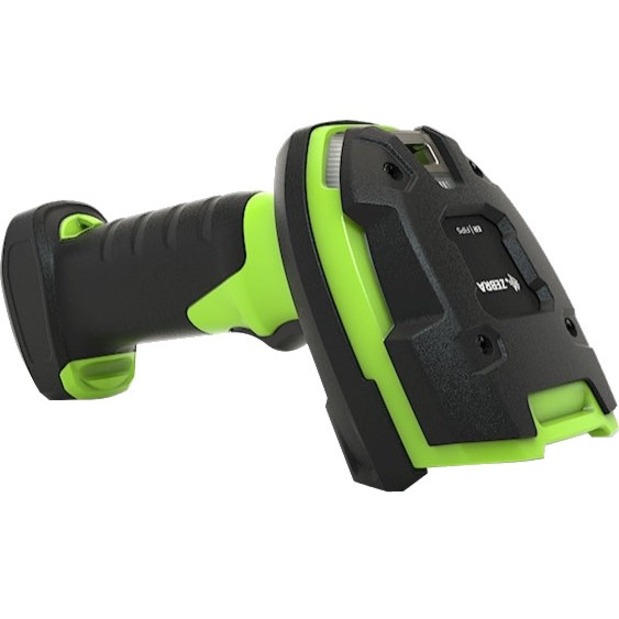

Zebra LI3608 – Ultra-rugged wired 1D barcode scanner (Extended)
The ultra-rugged wired 1D scanner: the fastest in its class, whether reading labels or on-screen text.
Manufacturer part no. LI3608-ER3U4600ZVW
· EAN 8596375060562
· Launched in 2016
Limited stock
Delivery in 2 to 3 days
Zebra LI3608-ER, 1D, ER, multi-IF, kit (USB), black, green
Key specifications of this reference:
- Connection: Corded USB
- Range: Long range
- Keypad: Without keypad
- Colour: Industrial green
- Ships with: USB kit
This reference
- Manufacturer part no.
- LI3608-ER3U4600ZVW
- EAN
- 8596375060562
- Brand
- Zebra
- Family
- Zebra LI3608
- Launched in
- 2016
Key specifications
- Type
- Handheld bar code reader
- Optical sensor resolution
- 2496 pixels
- Scanner type
- 1D
- Linear (1D) barcodes supported
- Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI, Plessey, U.P.C.
- 2D (matrix & stacked) barcodes supported
- Not supported
- Working distance
- 17.1 m
- Light levels (direct sunlight)
- 0 - 107639 lx
- Wavelength
- 660 nm
- Pitch reading angle
- -65 - 65°
- Connectivity technology
- Wired & Wireless
- Standard interfaces
- RS-232, USB, Keyboard wedge
- Data transfer rate
- 3 Mbit/s
- Wireless range
- 100 m
- Bluetooth version
- 4.0
Compatible accessories
Power supply / cable
Zebra CABLE - RS232: DB9 FEMALE CONNECTOR 7 F
33.00 €
Power supply / cable
Zebra 2.74 m Serial Data Transfer Cable - First End: 9-pin DB-9 RS-232 Serial - Female
65.00 €
Power supply / cable
Zebra CABLE RS232 DB9 FEMALE CONNECT 9 FT TXD
54.00 €
Power supply / cable
Zebra connector: Connection cable, USB, shielded, length: 2 m, straight, power supply
33.00 €
Power supply / cable
Zebra connection cable, USB
29.00 €
Power supply / cable
Zebra CABLE - SHIELDED USB: SERIES A CONNECTOR
54.00 €
Power supply / cable
Zebra CABLE - SHIELDED USB: SERIES A. 9. COIL
75.00 €
Power supply / cable
Zebra FORKLIFT DC POWER SUPPLY CABLE (FOR USE
46.00 €
Power supply / cable
Zebra DC CABLE FOR 3600 SERIES WITH FILTER FOR
17.00 €
Power supply / cable
Zebra MC90XX AND MC9190-G FORK LIFT CRADLE
713.00 €
The ultra-rugged wired 1D scanner: the fastest in its class, whether reading labels or on-screen text.
The Zebra LI3608 scans any printed or displayed 1D barcode faster than any other 1D scanner on the market, even if it is damaged or poorly printed. Ultra-rugged design: withstands drops from 2.4 metres, IP67-rated, suitable for cold store environments.
Standard (SR) or extended (ER) versions. Supplied as a USB kit, in industrial green.
Highlights
- Ultra-fast 1D scanning, on paper or on screen
- Extremely robust: withstands drops from 2.4 m, IP67
- Standard or extended scope
- USB kit included
- Auto-detected interfaces
Ideal for : Warehouses, production, goods-in, dispatch.
Technical specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Optical sensor resolution | 2496 pixels |
| Scanner type | 1D |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Working distance | 17.1 m |
| Light levels (direct sunlight) | 0 - 107639 lx |
| Wavelength | 660 nm |
| Pitch reading angle | -65 - 65° |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Data transfer rate | 3 Mbit/s |
| Wireless range | 100 m |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Performance | |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Water resistant |
| LED indicators | Yes |
| Product colour | Black, Green |
| Programming function | Yes |
| Power | |
| Power source type | Battery |
| Number of batteries supported | 1 |
| Number of reads per charge | 100000 |
| Weight & dimensions | |
| Width | 76 mm |
| Depth | 132 mm |
| Height | 185 mm |
| Weight | 327 g |
| Packaging data | |
| Cables included | No |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Battery | |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 3100 mAh |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
Why R2Scan
Authorised reseller, stock in Belgium, device configuration and commissioning, technical support and in-house repair workshop.
