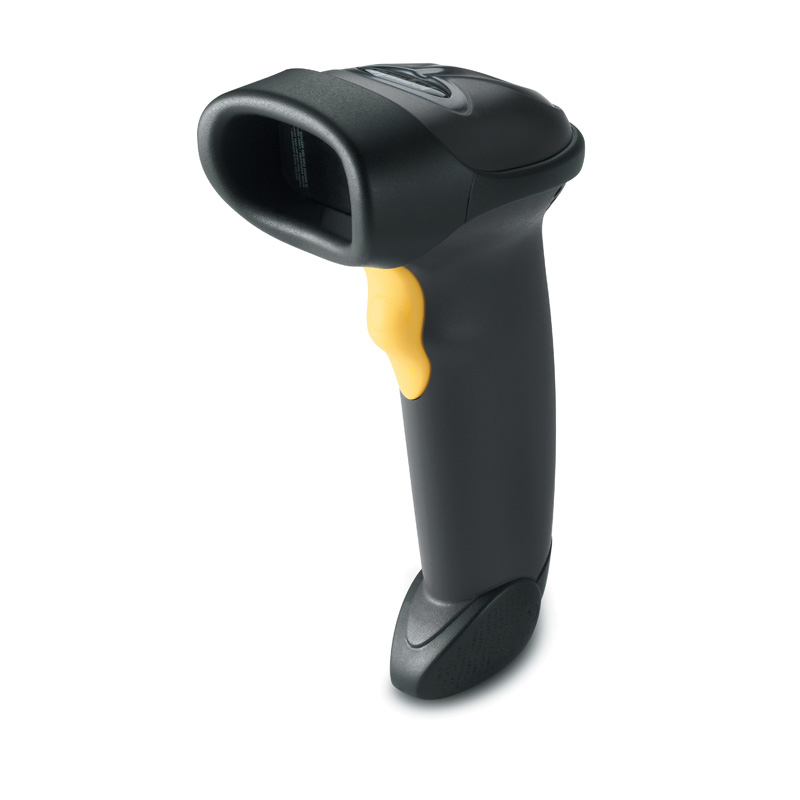

Zebra LS2208 – Wired 1D laser barcode scanner (Keyboard wedge cable, Black)
The LS2208: the world’s best-selling 1D laser scanner – simple, robust and affordable.
Zebra barcode scanner LS2208, connection: Corded USB, range: Standard, colour black, connection: Corded USB, range: Standard.
Key specifications of this reference:
- Connection: Corded USB
- Range: Standard
- Keypad: Without keypad
- Colour: Black
- Ships with: Keyboard wedge cable (KBW)
This reference
- Manufacturer part no.
- LS2208-SR20007R
- EAN
- 5052461126077
- Brand
- Zebra
- Family
- Zebra LS2208
- Launched in
- 2005
Key specifications
- Sensor type
- Laser
- Tilt reading angle
- -30 - 30°
- Pitch reading angle
- -65 - 65°
- Yaw reading angle
- -60 - 60°
- Decoding standards
- UPC/EAN UPC/EAN + Supplementals UCC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2 of 5 Discrete 2 of 5 Code 93 MSI Code 11 IATA GS1 DataBar Chinese 2 of 5
- Scan speed
- 100 sec/page
- Standard interfaces
- RS-485, USB, Keyboard wedge, RS-232
- Product colour
- Black
- Input voltage
- 5 V
- Power consumption
- 130 mA
- Weight
- 146 g
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- -40 - 70 °C
- Operating relative humidity (H-H)
- 5 - 95%
Compatible accessories
The LS2208: the world’s best-selling 1D laser scanner – simple, robust and affordable.
The Zebra LS2208 has been the go-to 1D laser scanner for checkouts and offices for over fifteen years: precise laser aiming, fast scanning, withstands drops from 1.5 metres, and is competitively priced.
USB and PS/2 kits, in black or white, with stand.
Highlights
- Reliable 1D laser
- Falls of 1.5 m
- USB or PS/2 kit
- Black or white; mount included depending on the kit
- Price of content
Ideal for : Small shops, offices, libraries.
Technical specifications
| Scanning | |
|---|---|
| Sensor type | Laser |
| Tilt reading angle | -30 - 30° |
| Pitch reading angle | -65 - 65° |
| Yaw reading angle | -60 - 60° |
| Decoding standards | UPC/EAN UPC/EAN + Supplementals UCC/EAN 128 Code 39 Code 39 Full ASCII Code 39 TriOptic Code 128 Code 128 Full ASCII Codabar Interleaved 2 of 5 Discrete 2 of 5 Code 93 MSI Code 11 IATA GS1 DataBar Chinese 2 of 5 |
| Scan speed | 100 sec/page |
| Ports & interfaces | |
| Standard interfaces | RS-485, USB, Keyboard wedge, RS-232 |
| Performance | |
| Product colour | Black |
| Power | |
| Input voltage | 5 V |
| Power consumption | 130 mA |
| Weight & dimensions | |
| Weight | 146 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| Other features | |
| Dimensions (WxDxH) | 63 x 84 x 152 mm |
| Safety | UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1 |
| Electromagnetic emissions | FCC Part 15 Class B, ICES 003 Class B |
| Light source | 650nm |
