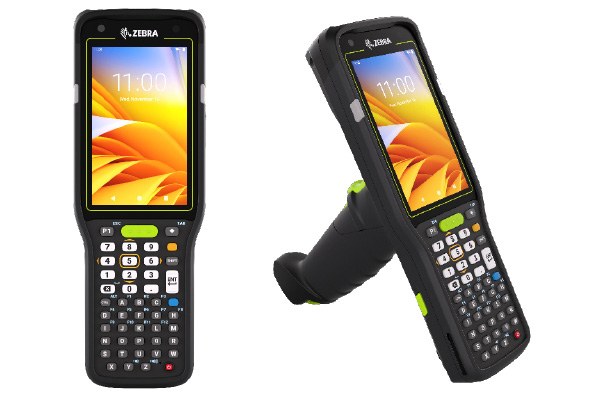

Zebra MC3400 – Android Wi-Fi 6E handheld terminal (SE58, 47 keys – alphanumeric, Without grip)
The new MC3000 series: 2.5 times more power, Wi-Fi 6E and a scan range of up to 30 metres.
Portable data collection device, 2D, imager (SE58), screen size: 4" (10.5 cm), resolution: 480x800 pixels, keypad (Quantity keys 47 keys, alphanumeric), straight shooter, Interactive Sensor, hot swappable, vibration, brightness 600cd, connection: USB-C, Bluetooth, Wi-Fi (Wi-Fi 6E), NFC, Micro SD-Slot, Qualcomm Octa Core, 2.4 GHz, RAM: 6 GB, Flash: 64 GB, OS: Android, incl.: Google Mobile Services, battery, 7000 mAh, protection class: IP65, IP67.
Key specifications of this reference:
- Network: Wi-Fi
- Scan engine: SE58
- Scan range: Flex (standard + long range)
- Keypad: 47 keys – alphanumeric
- Grip: Without grip
- Memory: 6 GB RAM / 64 GB
- Display: 4"
- Battery: 7000 mAh
- Wi-Fi: Wi-Fi 6E
- Operating system: Android GMS
- Regional reference: EMEA
This reference
- Manufacturer part no.
- MC3401-0S1M54SS-A6
- Brand
- Zebra
- Family
- Zebra MC3400
- Launched in
- 2024
Key specifications
- Display diagonal
- 10.2 cm (4")
- Display resolution
- 800 x 480 pixels
- Touchscreen
- Yes
- Touch technology
- Dual-touch
- Touchscreen type
- Capacitive
- Display brightness
- 600 cd/m²
- Display glass type
- Gorilla Glass
- Internal memory
- 6 GB
- Flash memory
- 64 GB
- Flash memory type
- UFS
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 2 TB
- Processor model
- 4490
- Processor frequency
- 2.4 GHz
Compatible accessories
The new MC3000 series: 2.5 times more power, Wi-Fi 6E and a scan range of up to 30 metres.
The Zebra MC3400 is the Wi-Fi pistol-grip scanner from the latest MC3000 series. It features a processor that is 2.5 times more powerful, Wi-Fi 6E, a redesigned keyboard with wider keys, facial recognition for security, and a hot-swappable battery.
A choice of four scan motors depending on the distance: the SE4770 for indoor/outdoor use, the SE55 for up to 12 m, and the SE58 for up to 30 m for the tallest racking systems.
Highlights
- Wi-Fi 6E, Bluetooth, NFC, USB-C
- SE4770, SE55 or SE58 scanner (up to 30 m)
- 4" screen, functional numeric keypad
- Hot-swappable battery
- Android GMS, Zebra DNA
Ideal for : Warehouses, production, goods-in and dispatch.
Technical specifications
| Display | |
|---|---|
| Display diagonal | 10.2 cm (4") |
| Display resolution | 800 x 480 pixels |
| Touchscreen | Yes |
| Touch technology | Dual-touch |
| Touchscreen type | Capacitive |
| Display brightness | 600 cd/m² |
| Display glass type | Gorilla Glass |
| Memory | |
| Internal memory | 6 GB |
| Flash memory | 64 GB |
| Flash memory type | UFS |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
| Processor | |
| Processor model | 4490 |
| Processor frequency | 2.4 GHz |
| Processor family | Qualcomm |
| Number of cores | 8 |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Bluetooth Low Energy (BLE) | Yes |
| Data network | Not supported |
| Near Field Communication (NFC) | Yes |
| GPS Performance | |
| GPS (satellite) | No |
| Camera | |
| Built-in camera | No |
| Audio | |
| Built-in microphone | Yes |
| Speakers | Mono |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Performance | |
| Product colour | Black |
| Scanner type | 1D/2D |
| Phone function | No |
| Vibrating alert | Yes |
| Drop proof | 180 cm |
| Push-to-Talk (PTT) | Yes |
| Sensors | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Gyroscope | Yes |
| Magnetometer | Yes |
Why R2Scan
Authorised reseller, stock in Belgium, device configuration and commissioning, technical support and in-house repair workshop.
