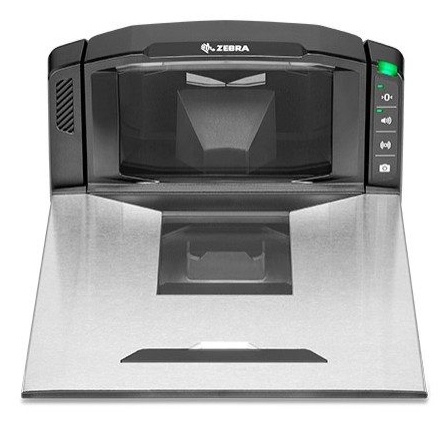

Zebra MP7000 – Bioptic checkout scanner
The MP7000: the multi-angle bioptic scanner for high-throughput checkouts, with an optional scale.
SCNR MP7001 MULTIPLANE SCAN MED
This reference
- Manufacturer part no.
- MP7001-MNDLM00EU
- EAN
- 8596375067745
- Brand
- Zebra
- Family
- Zebra MP7000
- Launched in
- 2017
- Keyboard type
- Without keypad
- Connection
- Corded USB
- Reading
- 1D/2D
- Keyboard
- Touchscreen
- Use
- Retail
- Included options
- Balance simple échelon
- Platter
- Medium, Tin oxide
Key specifications
- Type
- Built-in bar code reader
- Scanner type
- 1D/2D
- Sensor type
- CMOS
- Linear (1D) barcodes supported
- Codabar, Code 128, Code 32, Code 39, Code 93, Discrete 2 of 5, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, Interleaved 2 of 5, JAN, MSI, Plessey, Trioptic, UPC-A, UPC-E
- 2D (matrix & stacked) barcodes supported
- Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code
- Connectivity technology
- Wired
- Standard interfaces
- RS-232, RS-485, USB
- Keys quantity
- 4 keys
- LED indicators
- Yes
- Buzzer
- Yes
- Image formats supported
- BMP, JPEG
- Product colour
- Black, Stainless steel
- Power source type
- AC, RS-232, USB
- Power consumption (typical)
- 5.5 W
Compatible accessories
The MP7000: the multi-angle bioptic scanner for high-throughput checkouts, with an optional scale.
The Zebra MP7000 is the top-of-the-range built-in checkout scanner: 1D/2D scanning on six sides from the first pass, a scratch-resistant sapphire glass window, and an optional colour camera for product recognition. Versions are available with or without an integrated scale, and with a short or medium-sized scanning surface.
Reduced energy consumption, remote management tools, and easy replacement of existing bioptic scanners.
Highlights
- Multi-plane 1D/2D scanning from the very first pass
- Scratch-resistant sapphire crystal
- Optional built-in scales (MP7002/MP7202)
- Short or medium tray
- Remote management
Ideal for : Supermarkets, hypermarkets, busy checkouts.
Technical specifications
| Scanning | |
|---|---|
| Type | Built-in bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Linear (1D) barcodes supported | Codabar, Code 128, Code 32, Code 39, Code 93, Discrete 2 of 5, EAN 128, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1 Databar Limited, Interleaved 2 of 5, JAN, MSI, Plessey, Trioptic, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, RS-485, USB |
| Performance | |
| Keys quantity | 4 keys |
| LED indicators | Yes |
| Buzzer | Yes |
| Image formats supported | BMP, JPEG |
| Product colour | Black, Stainless steel |
| Power | |
| Power source type | AC, RS-232, USB |
| Power consumption (typical) | 5.5 W |
| Power consumption (standby) | 3 W |
| Input voltage | 90 - 264 V |
| Input frequency | 47 - 63 Hz |
| Weight & dimensions | |
| Width | 292 mm |
| Depth | 102 mm |
| Height | 128 mm |
| Weight | 7.1 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
