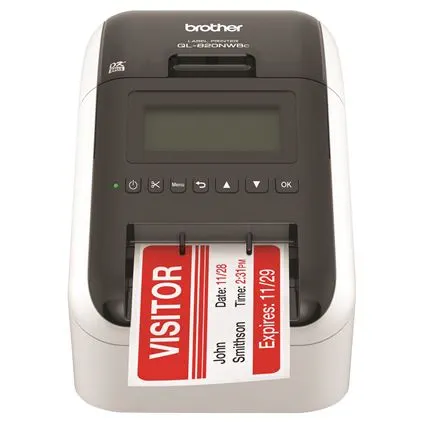

Brother QL-820NWB – Desktop label printer (300 dpi)
The Brother QL-820NWBc: black and red labels, USB, Ethernet, Wi-Fi and Bluetooth, built-in cutter.
Brother QL-820NWBc Direct Thermal Printer - Label Print - USB - Bluetooth 5.2 - Wireless LAN - With Cutter - LCD Display Screen - 60.96 mm (2.40") Print Width - 1.8 lps Mono - 300 x 300 dpi - 62 mm Label Width x 1000 mm Label Length - ESC/P, P-touch Template, Raster Emulation - For iOS, PC, Mac, Android
This reference
- Manufacturer part no.
- QL-820NWBc
- EAN
- 4977766826921
- Brand
- Brother
- Family
- Brother QL-820NWB
- Launched in
- 2017
- Resolution
- 300 dpi
- Technology
- Direct thermal
- Interfaces
- Bluetooth, Wi-Fi, Ethernet, USB
- Use
- Retail
- Included options
- Colour touchscreen
Key specifications
- Print technology
- Direct thermal
- Colour
- Yes
- Maximum resolution
- 300 x 300 DPI
- Print speed
- 176 mm/sec
- Print speed
- 110 lpm
- Printing colours
- Black, Red
- Maximum printing width
- 6.1 cm
- Vertical printing
- Yes
- Text alignment
- Center, Left
- Autocutter
- Yes
- Maximum label width
- 6.2 cm
- Connectivity technology
- Wired & Wireless
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
The Brother QL-820NWBc: black and red labels, USB, Ethernet, Wi-Fi and Bluetooth, built-in cutter.
The Brother QL-820NWBc prints labels up to 62 mm wide at 300 dpi from a PC, Mac, smartphone or tablet (AirPrint, MFi), or as a stand-alone device using its backlit LCD screen. Using the dedicated DK rolls, it prints in black and red without ink.
Built-in cutter for continuous labels up to 1 m long; optional battery pack for portable use.
Highlights
- Black and red ink-free labels
- USB, Ethernet, Wi-Fi, Bluetooth, AirPrint
- LCD screen, standalone mode
- Built-in paper cutter
- 300 dpi, 176 mm/s
Ideal for : Offices, dispatch, archiving and labelling, retail.
Technical specifications
| Printing | |
|---|---|
| Print technology | Direct thermal |
| Colour | Yes |
| Maximum resolution | 300 x 300 DPI |
| Print speed | 176 mm/sec |
| Print speed | 110 lpm |
| Printing colours | Black, Red |
| Maximum printing width | 6.1 cm |
| Vertical printing | Yes |
| Text alignment | Center, Left |
| Paper handling | |
| Autocutter | Yes |
| Maximum label width | 6.2 cm |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Bluetooth profiles | HCRP, OPP, SPP |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Wi-Fi Direct | Yes |
| Performance | |
| Page description languages | ESC P, Raster_P |
| Flash memory | 6 MB |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Code-39 Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Number of fonts | 5 |
| Tape type | DK |
| Security algorithms | EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, LEAP, PEAP, WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP |
| Design | |
| Product colour | Black, White |
| Built-in display | Yes |
| Display | LCD |
| Backlight display | Yes |
| Power | |
| AC input voltage | 220 - 240 V |
| Auto power off | Yes |
| Power source type | AC |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 234 mm |
| Height | 145 mm |
| Weight | 1.16 kg |
| Packaging content | |
| Cables included | USB |
| Bundled software | P-touch Editor 5, P-touch Editor Lite LAN, P-touch Address Book, BR Admin Light |
| AC adapter included | Yes |
| Manual | Yes |
