Zebra UHF RFID sled for mobile terminal

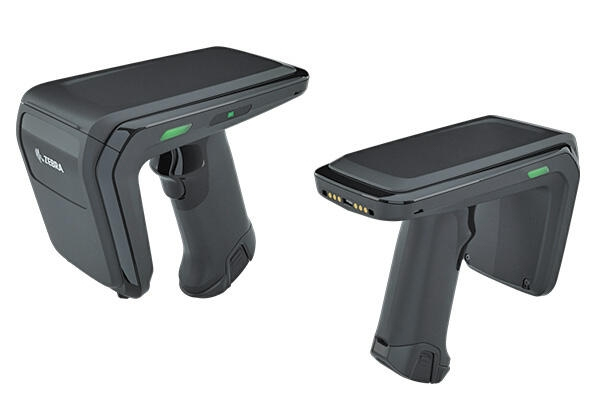

Zebra RFD40 – UHF RFID sled for mobile terminal (Bluetooth)

The RFD40: the UHF RFID sled that turns your Zebra terminal into a portable RFID reader.

Manufacturer part no. RFD4030-G00B700-E8 · EAN 8596375248649 · Launched in 2021 Available on order Delivery in 2 to 3 days
https://www.r2scan.com/web/image/product.template/4426/image_1920?unique=b657f62
(0 review)

Zebra RFID reader RFD40, connection: Bluetooth (cordless), range: Standard, range: Standard.

Key specifications of this reference:

  • Scan range: Standard
  • Connection: Bluetooth (cordless)
  • Range: Standard
  • Keypad: Without keypad
  • RFID: Integrated UHF RFID reader

923.00 € excl. VAT 1116.83 EUR 923.00 €

1,116.83 € incl. VAT

Prix sur demande

  • Scan range
  • Keyboard type
  • Connection
  • Range
  • Reading
  • Keyboard
  • Use
  • Brand
  • Included options
  • RFID
  • Famille

This combination does not exist.

Request a price
This reference
Manufacturer part no.
RFD4030-G00B700-E8
EAN
8596375248649
Brand
Zebra
Family
Zebra RFD40
Launched in
2021
Key specifications
Interface
RF Wireless
Operating frequency
900 MHz
Product colour
Black
International Protection (IP) code
IP54
LED indicators
Yes
Maximum indoor range
6 m
Maximum outdoor range
6 m
Certification
EMI/EMC FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55035; EN 55032 Class B; EN 60601-1-2 Electrical Safety IEC 62368-1 (ed.2) |UL 62368-1, second edition, CAN/CSA-C22.2 No. 62368-1-14 RF Exposure EU: EN 50364, EN 62369-1, EN 50566, EN 62311; USA: FCC Part 2. 1093 OET Bulletin 65 Supplement ‘C’; Canada: RSS-102 RFID EU EN 302 208, FCC Part 15 Subpart C; Canada: RSS-247
Battery type
Built-in battery
Battery technology
Lithium-Ion (Li-Ion)
Battery capacity
7000 mAh
Width
166.5 mm
Depth
84 mm
Height
151 mm
All specifications

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Share

See all versions of this family Zebra RFD40 (5)

Compatible accessories

The RFD40: the UHF RFID sled that turns your Zebra terminal into a portable RFID reader.

The Zebra RFD40 attaches to the underside of a Zebra mobile terminal (TC2x, TC5x, TC7x, EC5x, etc.) via an adapter and reads up to 1,300 tags per second at standard range. Replaceable battery; Premium and Premium Plus versions (Bluetooth, Wi-Fi 6, NFC).

For stock-taking, searching for items and checking deliveries.

Highlights

  • UHF RFID, up to 1,300 tags per second
  • Compatible with TC2x/TC5x/TC7x terminals
  • Replaceable battery
  • Premium or Premium Plus (Bluetooth, Wi-Fi 6)
  • Circular antenna

Ideal for : Retail, RFID stock-taking, logistics.

Technical specifications

Technical details
InterfaceRF Wireless
Operating frequency900 MHz
Product colourBlack
International Protection (IP) codeIP54
LED indicatorsYes
Maximum indoor range6 m
Maximum outdoor range6 m
CertificationEMI/EMC FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55035; EN 55032 Class B; EN 60601-1-2 Electrical Safety IEC 62368-1 (ed.2) |UL 62368-1, second edition, CAN/CSA-C22.2 No. 62368-1-14 RF Exposure EU: EN 50364, EN 62369-1, EN 50566, EN 62311; USA: FCC Part 2. 1093 OET Bulletin 65 Supplement ‘C’; Canada: RSS-102 RFID EU EN 302 208, FCC Part 15 Subpart C; Canada: RSS-247
Power
Battery typeBuilt-in battery
Battery
Battery technologyLithium-Ion (Li-Ion)
Battery capacity7000 mAh
Weight & dimensions
Width166.5 mm
Depth84 mm
Height151 mm
Weight541 g
Operational conditions
Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)5 - 85%
Storage temperature (T-T)-40 - 70 °C
Packaging data
Batteries includedYes
