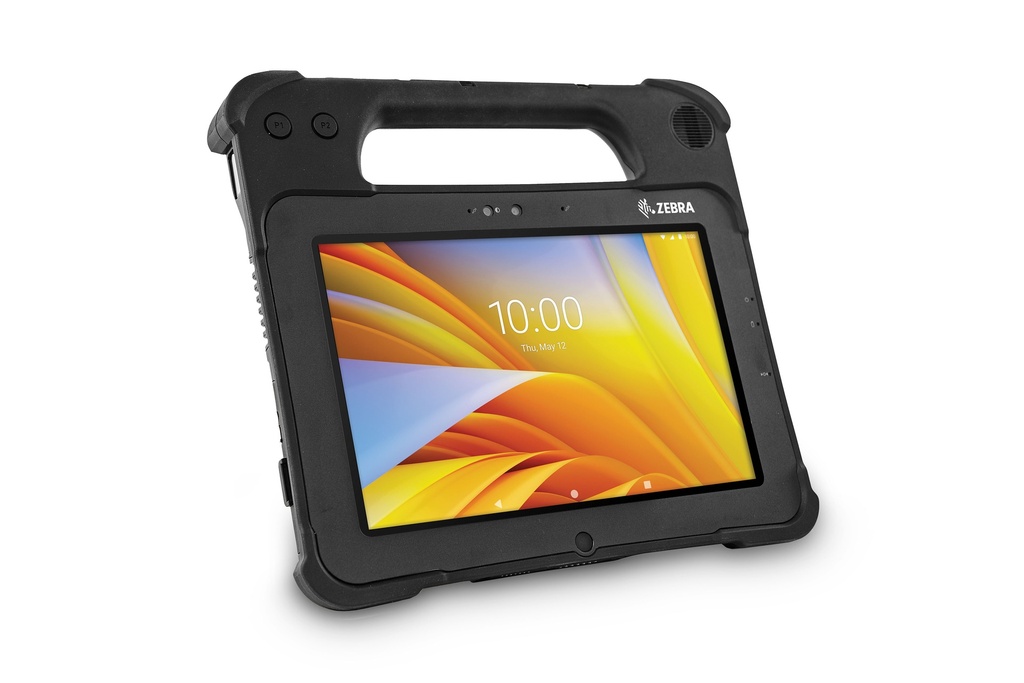

Zebra L10ax – Ruggedized 10-inch Windows tablet (10.1")
The Intel L10 series, designed for hazardous sites and extreme environments.
Zebra L10ax RTL10C0-0C22X1X-01: touch screen, no physical keypad, 10.1" display.
Key specifications of this reference:
- Network: Wi-Fi
- Keypad: Touch
- Grip: Without grip
- Display: 10.1"
- Operating system: Windows
This reference
- Manufacturer part no.
- RTL10C0-0C22X1X-01
- Brand
- Zebra
- Family
- Zebra L10ax
- Launched in
- 2022
Key specifications
- Display diagonal
- 25.6 cm (10.1")
- Display resolution
- 1920 x 1200 pixels
- Display brightness
- 1000 cd/m²
- Display glass type
- Gorilla Glass
- Touchscreen type
- Capacitive
- HD type
- 2K
- Native aspect ratio
- 16:10
- Anti-reflective coating
- Yes
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i5
- Processor generation
- 11th gen Intel® Core™ i5
- Processor model
- i5-1135G7
- Processor cores
- 4
- Processor threads
- 8
Compatible accessories
The Intel L10 series, designed for hazardous sites and extreme environments.
The Zebra XSLATE L10ax (model number RTL10C) replaces the original L10's ARM chip with an 11th-generation Intel Core i5-1135G7 processor, 8GB of RAM, and a 128GB SSD, running Windows 10 Pro (compatible with Windows 11). The 10.1" Full HD+ (1920x1200) Gorilla Glass 3 display reaches 1000 nits for excellent readability in direct sunlight.
In terms of connectivity, it now features Wi-Fi 6E, Bluetooth 5.2, and offers optional 5G/4G, with a fingerprint reader and smart card reader available. IP65 certified even with the doors open, it is Class 1 Div 2 approved for use in potentially explosive atmospheres.
Highlights
- 10.1" Full HD+ screen, Gorilla Glass 3, 1000 nits
- Intel Core i5-1135G7, 8GB/128GB SSD
- Wi-Fi 6E, Bluetooth 5.2, 5G/4G optional
- IP65 open doors, Class 1 Div 2 certified
- Windows 10 Pro, Windows 11 compatible
Ideal for : Energy, mining, utilities, hazardous sites, heavy industry.
Technical specifications
| Display | |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1200 pixels |
| Display brightness | 1000 cd/m² |
| Display glass type | Gorilla Glass |
| Touchscreen type | Capacitive |
| HD type | 2K |
| Native aspect ratio | 16:10 |
| Anti-reflective coating | Yes |
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1135G7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.2 GHz |
| Memory | |
| Internal memory | 16 GB |
| Storage | |
| Internal storage capacity | 256 GB |
| Storage media | Flash |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSDXC |
| Graphics | |
| Graphics card family | Intel |
| Graphics card | Iris Xe Graphics |
| Audio | |
| Number of built-in speakers | 1 |
| Number of microphones | 2 |
| Camera | |
| Rear camera type | Single camera |
| Rear camera resolution (numeric) | 13 MP |
| Front camera | Yes |
| Front camera resolution (numeric) | 2 MP |
| Windows Hello | Yes |
| Network | |
| Mobile network connection | No |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet LAN | Yes |
| Near Field Communication (NFC) | Yes |
| Dual SIM support | Yes |
| SIM card type | NanoSIM + eSIM |
| Ports & interfaces | |
| USB 2.0 Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| 3.5 mm connector | Yes |
| Headphone out | Yes |
| Headphone connectivity | 3.5 mm |
| Design | |
| Device type | Tablet PC |
| Housing material | Magnesium |
| Form factor | Slate |
| Product colour | Black |
| Protection features | Water resistant |
| Recommended usage | Indoor/outdoor |
| Recommended age group | Adult |
