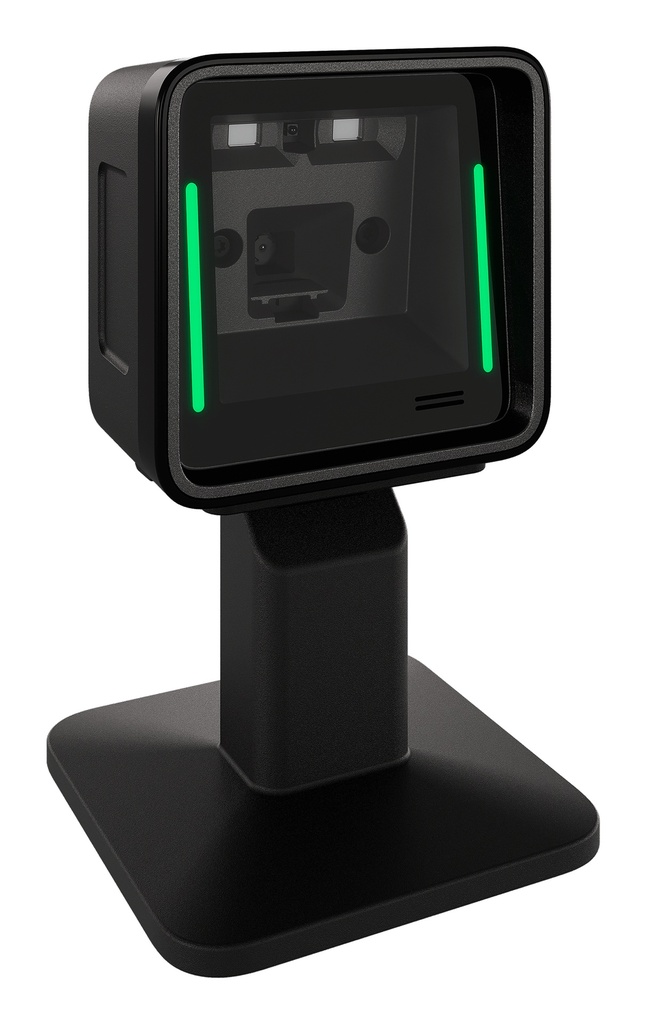

Zebra DS8108 – Premium wired 1D/2D barcode scanner (USB kit + stand, Black)
The DS8108: Zebra’s premium point-of-sale scanner, available in a disinfectable healthcare version.
Zebra presentation scanner DS8108, connection: Corded USB, range: Standard, colour black, connection: Corded USB, range: Standard, colour noir.
Key specifications of this reference:
- Connection: Corded USB
- Range: Standard
- Keypad: Without keypad
- Colour: Black
- Ships with: Support inclus
This reference
- Manufacturer part no.
- SP2002-SR400000SGW
- Brand
- Zebra
- Family
- Zebra DS8108
- Launched in
- 2017
Key specifications
- Type
- Fixed bar code reader
- Scanner type
- 1D/2D
- Sensor type
- CMOS
- Linear (1D) barcodes supported
- Code 39, Code 128, Code 93, Codabar, Code 11, MSI-Plessey, EAN-13, UPC-A, Korean 3 of 5, GS1 DataBar
- 2D (matrix & stacked) barcodes supported
- QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Composite Codes, Aztec Code, MaxiCode, SecurPharm
- Optical sensor resolution (W x H)
- 1280 x 800 pixels
- Working distance range
- 64 - 198 mm
- Horizontal field of view
- 62°
- Vertical field of view
- 41°
- Pitch reading angle
- -60 - 60°
- Connectivity technology
- Wired
- Standard interfaces
- RS-232
- International Protection (IP) code
- IP52
- Protection features
- Drop resistant, Electrostatic Discharge (ESD) protection, Impact resistant, Shock resistant
Compatible accessories
The DS8108: Zebra’s premium point-of-sale scanner, available in a disinfectable healthcare version.
The Zebra DS8108 is the top-of-the-range corded scanner for the retail sector: ultra-fast capture of 1D/2D barcodes, even on screens, damaged barcodes or those under plastic film; extended reach to access the back of the trolley; and a 360° status light.
White DS8108-HC version, resistant to disinfectants, for the healthcare sector. USB kits with or without a holder, ‘stand’ kits for hands-free scanning.
Highlights
- Ultra-fast 1D/2D scanning, on-screen codes
- Extended reach to the back of the trolley
- 360° status indicator
- Healthcare-grade, disinfectable version (HC)
- USB kit, optional mount
Ideal for : Retail, pharmacies, healthcare.
Technical specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Scanner type | 1D/2D |
| Sensor type | CMOS |
| Linear (1D) barcodes supported | Code 39, Code 128, Code 93, Codabar, Code 11, MSI-Plessey, EAN-13, UPC-A, Korean 3 of 5, GS1 DataBar |
| 2D (matrix & stacked) barcodes supported | QR Code, Micro QR Code, Data Matrix, PDF417, MicroPDF417, Composite Codes, Aztec Code, MaxiCode, SecurPharm |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Working distance range | 64 - 198 mm |
| Horizontal field of view | 62° |
| Vertical field of view | 41° |
| Pitch reading angle | -60 - 60° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232 |
| Performance | |
| International Protection (IP) code | IP52 |
| Protection features | Drop resistant, Electrostatic Discharge (ESD) protection, Impact resistant, Shock resistant |
| LED indicators | Power |
| Print contrast | 20% |
| Product colour | Black |
| Power | |
| Power source type | USB, RS-232 |
| Input voltage | 4.75 - 5.25 V |
| Weight & dimensions | |
| Width | 75 mm |
| Depth | 57 mm |
| Height | 75 mm |
| Weight | 110 g |
| Base weight | 108 g |
| Base dimensions (WxDxH) | 80 x 80 x 140 mm |
| Packaging data | |
| Stand included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Drop resistance | 1.5 m |
| Technical details | |
| Warranty period | 3 year(s) |
| Compliance certificates | IECEx, CSA, UL |
Why R2Scan
Authorised reseller, stock in Belgium, device configuration and commissioning, technical support and in-house repair workshop.
