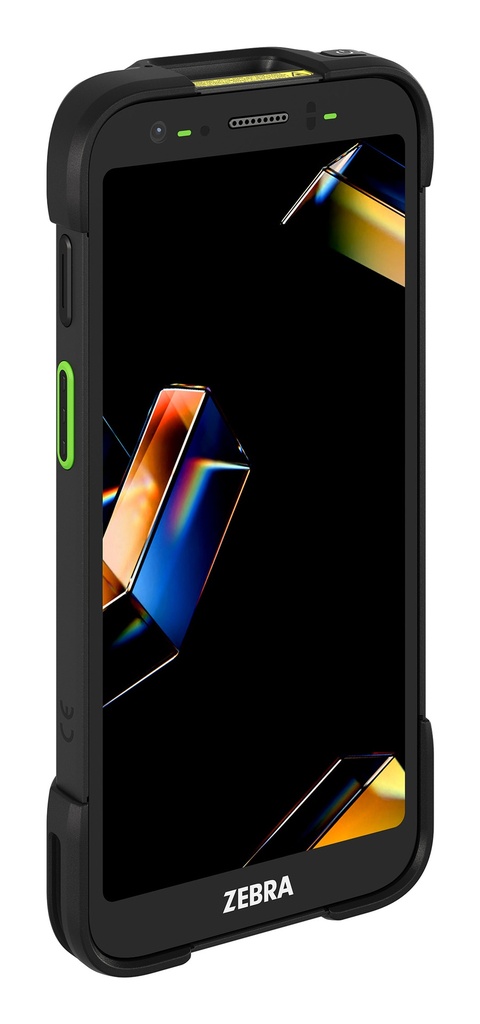

Zebra TC701 – Ultra-rugged Android mobile terminal (Wi-Fi + 4G/5G, 12 GB RAM)
The new-generation TC7: Wi-Fi 7, optional 5G, up to 12 GB of RAM and on-board AI.
Portable data collection device, RFID reader, 2D, imager (AC670), 6" (15.2 cm), capacitive, multi touch, 2160x1080 pixels, Camera (50 MP), front camera (8 MP), hot swappable, vibration, brightness 1500cd, connection: USB-C, Bluetooth (BLE), Wi-Fi 7 (802.11be), SIM, eSIM, 5G, NFC, Micro SD-Slot, Qualcomm Octa Core, 2.9 GHz, 12 GB, 256 GB, Android, incl.: battery, 5000 mAh, removable battery, IP65, IP68, MIL-STD 810H.
Key specifications of this reference:
- Network: Wi-Fi + 4G/5G
- Scan engine: AC670
- Scan range: Extra long range
- Keyboard: Touchscreen
- Grip: Without grip
- Memory: 12 GB RAM / 256 GB
- Battery: Standard
- Wi-Fi: Wi-Fi 7
- Operating system: Android
- Regional reference: EMEA
This reference
- Manufacturer part no.
- TC701G-341E2B1A01-A6
- Brand
- Zebra
- Family
- Zebra TC701
- Launched in
- 2025
Key specifications
- Display
- AMOLED
- Display diagonal
- 15.2 cm (6")
- Display resolution
- 2160 x 1080 pixels
- Touchscreen
- Yes
- Touch technology
- Multi-touch
- Touchscreen type
- Optical
- Display brightness
- 1500 cd/m²
- Display glass type
- Corning Glass
- Internal memory
- 12 GB
- Flash memory
- 256 GB
- Flash memory type
- UFS
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 2 TB
- Processor manufacturer
- Qualcomm
Compatible accessories
The new-generation TC7: Wi-Fi 7, optional 5G, up to 12 GB of RAM and on-board AI.
The Zebra TC701 is the top-of-the-range, ultra-rugged terminal in Zebra’s new platform: a Qualcomm 6690 processor running at up to 2.9 GHz with AI acceleration, 8 or 12 GB of RAM, 128 or 256 GB of storage, Wi-Fi 7 and, on WAN versions, 5G with eSIM.
SR500 or SR560 extended-range scanner, 50 MP camera, optional RFID reader, hot-swappable battery and dedicated TC701 accessories (quick-charge stations, electronic handle, exoskeleton).
Highlights
- Qualcomm 6690 up to 2.9 GHz, on-device AI
- 8 or 12 GB RAM / 128 or 256 GB
- Wi-Fi 7, 5G + eSIM option
- SR500 or SR560 scanner with extended range
- Extremely robust, hot-swappable battery
- 50 MP camera, optional RFID
Ideal for : Warehouses, transport, production, and work in challenging conditions.
Technical specifications
| Display | |
|---|---|
| Display | AMOLED |
| Display diagonal | 15.2 cm (6") |
| Display resolution | 2160 x 1080 pixels |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Optical |
| Display brightness | 1500 cd/m² |
| Display glass type | Corning Glass |
| Memory | |
| Internal memory | 12 GB |
| Flash memory | 256 GB |
| Flash memory type | UFS |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
| Processor | |
| Processor manufacturer | Qualcomm |
| Processor frequency | 2.9 GHz |
| Processor family | Qualcomm Dragonwing |
| Number of cores | 8 |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Bluetooth | Yes |
| Bluetooth version | 6.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Near Field Communication (NFC) | Yes |
| GPS Performance | |
| GPS (satellite) | Yes |
| GLONASS | Yes |
| BeiDou | Yes |
| Galileo | Yes |
| Camera | |
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 50 MP |
| Front camera resolution (numeric) | 8 MP |
| Auto focus | Yes |
| Built-in flash | Yes |
| Audio | |
| Built-in microphone | Yes |
| Number of microphones | 2 |
| Speakers | stereo |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Performance | |
| Product colour | Black |
| RFID reader | Yes |
| Barcode reader | Yes |
| Scanner type | 1D/2D |
| USB On-The-Go support | Yes |
| Sensors | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Proximity sensor | Yes |
| Gyroscope | Yes |
Why R2Scan
Authorised reseller, stock in Belgium, device configuration and commissioning, technical support and in-house repair workshop.
