Zebra HC20 – Android mobile healthcare terminal with Wi-Fi (6", SE4720)
The HC20: Zebra’s disinfectable healthcare terminal, featuring an SE4720 scanner and a 6-inch screen.
Portable data collection device, 2D, imager (SE4720), screen size: 6" (15.2 cm), resolution: 2160x1080 pixels, desinfectable housing, Camera (16 MP), Push to talk, USB-C, Bluetooth (class 5.2), Wi-Fi (Wi-Fi 6), audio, NFC, Micro SD-Slot, Qualcomm Hexa-Core, 2,1 GHz, RAM: 6 GB, Flash: 64 GB, Android, Google Mobile Services, IP65, IP68, white.
Key specifications of this reference:
- Network: Wi-Fi
- Scan engine: SE4720
- Scan range: Standard
- Keypad: Touch
- Grip: Without grip
- Memory: 6 GB RAM / 64 GB
- Display: 6"
- Wi-Fi: Wi-Fi 6
- Operating system: Android GMS
- Regional reference: EMEA
This reference
- Manufacturer part no.
- WLMT0-H20B6BCJ1-A6
- EAN
- 0663056027997
- Brand
- Zebra
- Family
- Zebra HC20/HC25
- Launched in
- 2022
Key specifications
- Display
- LED
- Display diagonal
- 15.2 cm (6")
- Display resolution
- 1080 x 2160 pixels
- Touchscreen
- Yes
- Touch technology
- Multi-touch
- Touchscreen type
- Capacitive
- Display brightness
- 450 cd/m²
- Display glass type
- Corning Glass
- Internal memory
- 6 GB
- Flash memory
- 64 GB
- Compatible memory cards
- MicroSD (TransFlash)
- Maximum memory card size
- 2 TB
- Processor model
- 5430
- Processor frequency
- 2.1 GHz

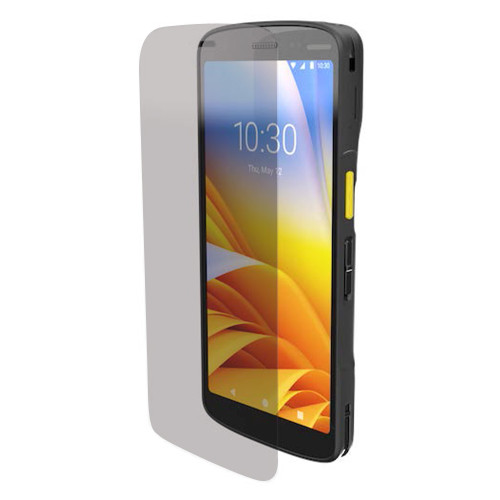

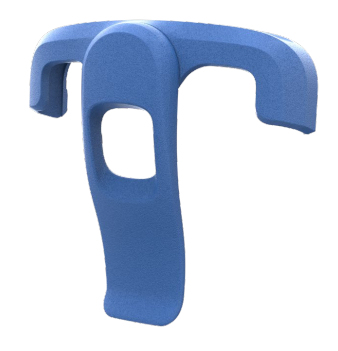

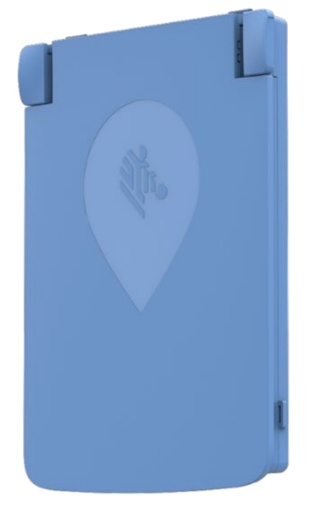

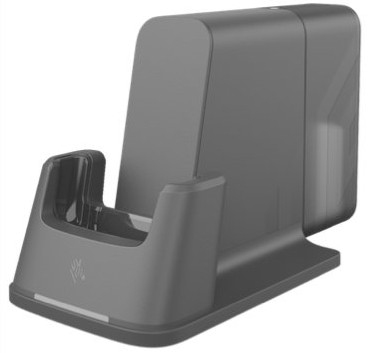

Compatible accessories
The HC20: Zebra’s disinfectable healthcare terminal, featuring an SE4720 scanner and a 6-inch screen.
The Zebra HC20 is based on the TC2x platform and features a white housing designed for the healthcare sector: disinfectant-resistant plastics, waterproof seals and a dedicated alert button. 6-inch display, SE4720 scanner, Wi-Fi 6, NFC and a 16 MP camera.
Ideal for administering medication, tracking samples and facilitating communication amongst healthcare teams.
Highlights
- Disinfectable casing, watertight seals
- SE4720 scanner, 6" screen
- Wi-Fi 6, Bluetooth, NFC
- 16 MP camera
- Android GMS, Zebra DNA
Ideal for : Hospitals, clinics, laboratories, pharmacies.
Technical specifications
| Display | |
|---|---|
| Display | LED |
| Display diagonal | 15.2 cm (6") |
| Display resolution | 1080 x 2160 pixels |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Capacitive |
| Display brightness | 450 cd/m² |
| Display glass type | Corning Glass |
| Memory | |
| Internal memory | 6 GB |
| Flash memory | 64 GB |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 2 TB |
| Processor | |
| Processor model | 5430 |
| Processor frequency | 2.1 GHz |
| Processor family | Qualcomm |
| Network | |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Bluetooth Low Energy (BLE) | Yes |
| Data network | Not supported |
| Near Field Communication (NFC) | Yes |
| GPS Performance | |
| GPS (satellite) | No |
| Camera | |
| Built-in camera | Yes |
| Rear camera resolution (numeric) | 16 MP |
| Audio | |
| Built-in microphone | Yes |
| Number of microphones | 3 |
| Speakers | stereo |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Performance | |
| Product colour | Blue |
| International Protection (IP) code | IP65, IP68 |
| Sensors | |
| Ambient light sensor | Yes |
| Accelerometer | Yes |
| Proximity sensor | Yes |
| Magnetometer | Yes |
