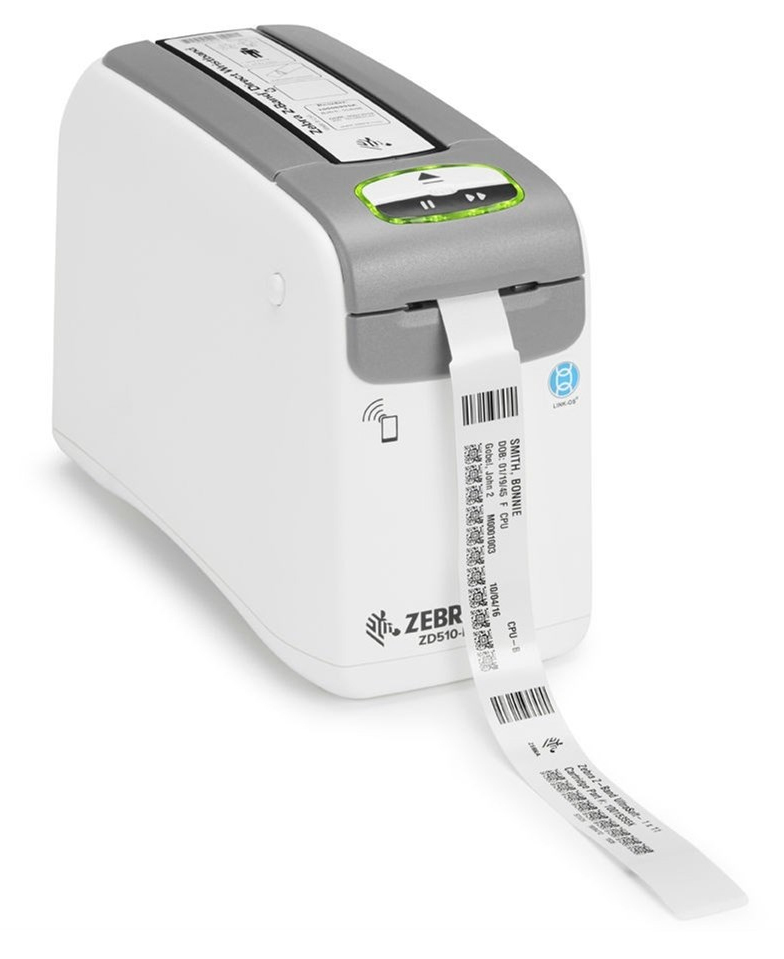

Zebra ZD510 – Wristband printer (300 dpi)
The ZD510-HC: the cartridge-based patient wristband printer, ready to print in 3 seconds.
Zebra desktop label printer ZD510, Direct thermal, 300 dpi.
Key specifications of this reference:
- Technology: Direct thermal
- Resolution: 300 dpi
- Interfaces: Ethernet + USB
This reference
- Manufacturer part no.
- ZD51013-D0ER00FZ
- EAN
- 5715328205550
- Brand
- Zebra
- Family
- Zebra ZD510
- Launched in
- 2018
Key specifications
- Print technology
- Direct thermal
- Colour
- No
- Maximum resolution
- 300 x 300 DPI
- Print speed
- 102 mm/sec
- Maximum printing width
- 3.02 cm
- Minimum print length
- 7.6 cm
- Connectivity technology
- Wired
- Ethernet LAN
- Yes
- Wi-Fi
- No
- Bluetooth
- No
- USB port
- Yes
- USB 2.0 ports quantity
- 2
- Optional connectivity
- Wireless LAN
- Page description languages
- ZBI, ZPL, ZPL II

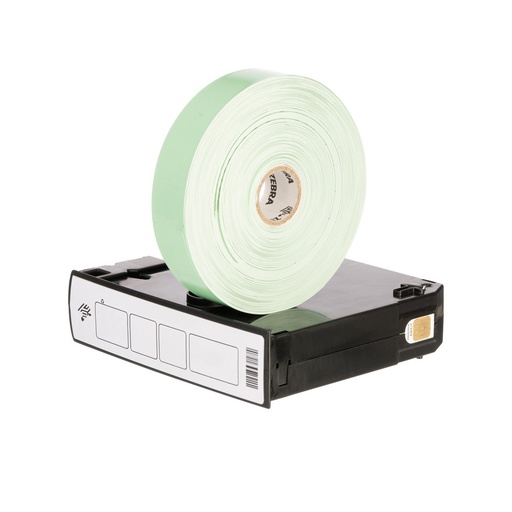

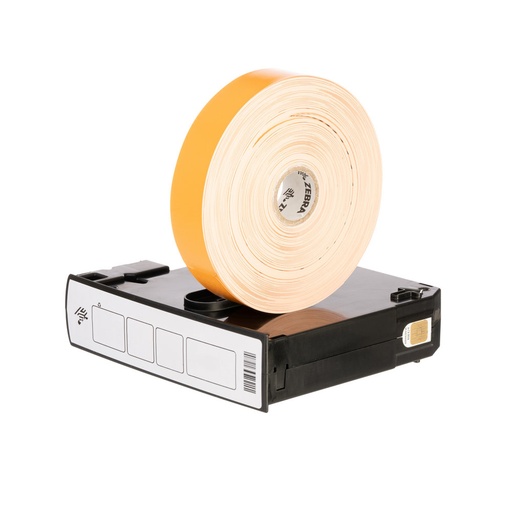

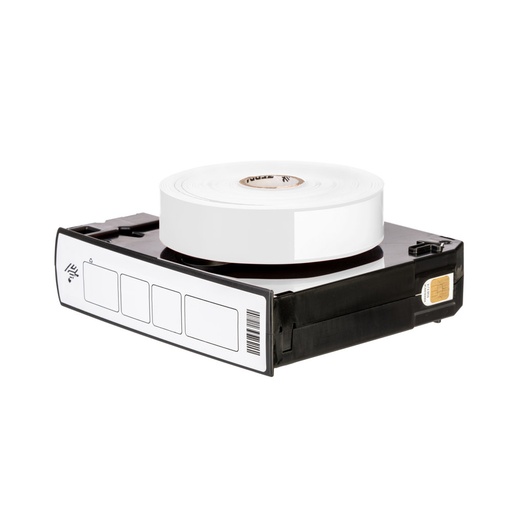

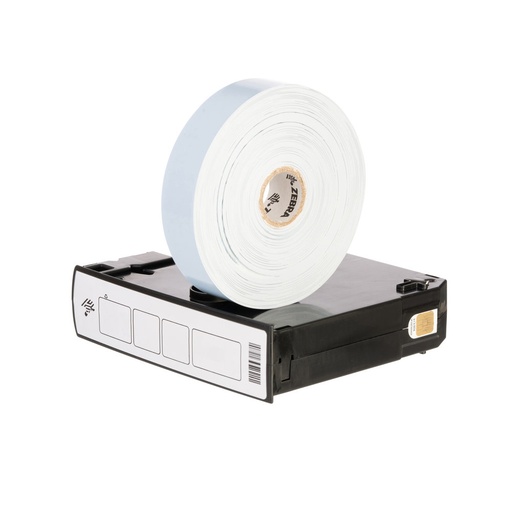

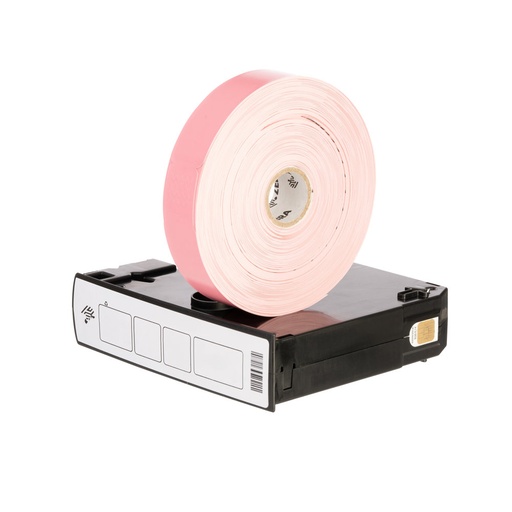

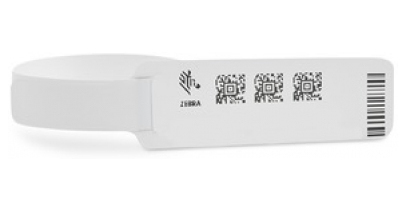

Compatible accessories
The ZD510-HC: the cartridge-based patient wristband printer, ready to print in 3 seconds.
The Zebra ZD510-HC prints patient identification wristbands using Z-Band cartridges, which load in three seconds without the need to handle the media. It features a disinfectable housing, a medical-grade power supply, and Ethernet, Wi-Fi and Bluetooth connectivity, depending on the version.
Wristbands for adults, children and infants; silent models for healthcare settings.
Highlights
- Wristband cartridges, 3-second loading
- Disinfectable casing
- Ethernet, Wi-Fi/Bluetooth (depending on version)
- Medical nutrition
- Quiet
Ideal for : Admissions, maternity wards, A&E.
Technical specifications
| Printing | |
|---|---|
| Print technology | Direct thermal |
| Colour | No |
| Maximum resolution | 300 x 300 DPI |
| Print speed | 102 mm/sec |
| Maximum printing width | 3.02 cm |
| Minimum print length | 7.6 cm |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| Optional connectivity | Wireless LAN |
| Performance | |
| Page description languages | ZBI, ZPL, ZPL II |
| Certification | FCC Part 15, Subpart B, VCCI, RCM CE: EN 55032:2012 B, EN 55024:2010, EN 61000-3-2, EN 61000-3-3, CISPR 32:2015 CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTL IEC 60601-1:2012 |
| Design | |
| Product colour | White |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) | 4.4 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
| Width | 127 mm |
| Depth | 242 mm |
| Height | 178 mm |
| Weight | 1.4 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package type | Box |
