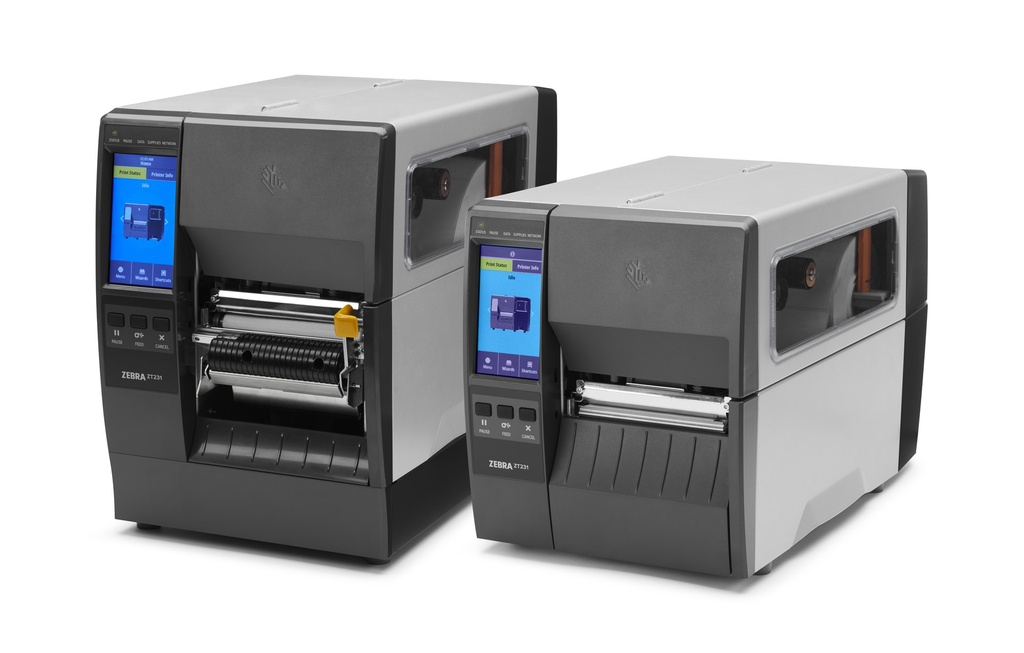

Zebra ZT231 – Industrial label printer (300 dpi, Thermal transfer)
The ZT231: the compact industrial printer at the right price, with a colour touchscreen and an all-metal chassis.
Manufacturer part no. ZT23143-T0EC00FZ
· EAN 0663056024033
· Launched in 2022
In stock
Delivery in 2 to 3 days
Zebra industrial label printer ZT231, Thermal transfer, 300 dpi, 8 dots/mm (203 dpi), display, USB, USB Host, RS232, BT (BLE), Ethernet, EPL, ZPL, ZPLII.
Key specifications of this reference:
- Technology: Thermal transfer
- Resolution: 300 dpi
- Interfaces: Bluetooth + Ethernet + Serial + USB + Wi-Fi
This reference
- Manufacturer part no.
- ZT23143-T0EC00FZ
- EAN
- 0663056024033
- Brand
- Zebra
- Family
- Zebra ZT231
- Launched in
- 2022
Key specifications
- Print technology
- Thermal transfer
- Colour
- No
- Maximum resolution
- 300 x 300 DPI
- Print speed
- 203 mm/sec
- Maximum printing width
- 10.4 cm
- Ribbon width
- 11 cm
- Ribbon length
- 450 m
- Media thickness
- 0.076 - 0.010 mm
- Maximum media length
- 185.4 cm
- Core diameter
- 2.54 cm
- Connectivity technology
- Wired & Wireless
- Ethernet LAN
- Yes
- Wi-Fi
- Yes
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
Compatible accessories
Wax thermal transfer ribbon
Zebra Ruban cire 2300 – Wax thermal transfer ribbon (12 rolls, Desktop, 74 m, 64 mm)
19.98 €
Wax thermal transfer ribbon
Zebra Ruban cire 2300 – Wax thermal transfer ribbon (12 rolls, Desktop, 74 m, 110 mm)
34.26 €
Resin thermal transfer ribbon
Zebra Ruban résine 5095 – Resin thermal transfer ribbon (12 rolls, Desktop, 74 m, 110 mm)
108.94 €
Economical direct thermal paper labels
Zebra Z-Perform 1000D – Economical direct thermal paper labels (51 × 32 mm, 10 rolls, 4 790 étiquettes, 76 mm)
147.35 €
Thermal transfer paper labels
Zebra Z-Select 2000T – Thermal transfer paper labels (57 × 32 mm, 12 rolls, 2 100 étiquettes, 25 mm)
111.49 €
Thermal transfer paper labels
Zebra Z-Select 2000T – Thermal transfer paper labels (102 × 38 mm, 12 rolls, 1 790 étiquettes, 25 mm)
171.11 €
Thermal transfer paper labels
Zebra Z-Select 2000T – Thermal transfer paper labels (102 × 76 mm, 12 rolls, 930 étiquettes, 25 mm)
171.11 €
Economical direct thermal paper labels
Zebra Z-Perform 1000D – Economical direct thermal paper labels (100 × 50 mm, 4 rolls, 3 000 étiquettes, 76 mm)
98.54 €
Economical thermal transfer paper labels
Zebra Z-Perform 1000T – Economical thermal transfer paper labels (76 × 25 mm, 6 rolls, 5 180 étiquettes, 76 mm)
207.73 €
Economical thermal transfer paper labels
Zebra Z-Perform 1000T – Economical thermal transfer paper labels (102 × 51 mm, 4 rolls, 2 590 étiquettes, 76 mm)
153.02 €
Synthetic thermal transfer labels
Zebra Z-Trans 8000T – Synthetic thermal transfer labels (51 × 25 mm, 10 rolls, 5 180 étiquettes, Industrial 4")
208.26 €
Thermal transfer paper labels
Zebra Z-Select 2000T – Thermal transfer paper labels (102 × 152 mm, 4 rolls, 950 étiquettes, 76 mm)
77.98 €
Printer accessory
Zebra KIT RIBBON SUPPLY SPINDLE FOR RIBBONS C
92.00 €
Direct thermal paper labels
Zebra Z-Select 2000D – Direct thermal paper labels (57 × 19 mm, 12 rolls, 3 315 étiquettes, 25 mm)
145.89 €
Removable direct thermal paper labels
Zebra Z-Select 2000D Removable – Removable direct thermal paper labels (57 × 32 mm, 2 100 étiquettes)
163.66 €
Direct thermal paper labels
Zebra Z-Select 2000D – Direct thermal paper labels (57 × 51 mm, 12 rolls, 1 370 étiquettes, 25 mm)
145.89 €
Direct thermal paper labels
Zebra Z-Select 2000D – Direct thermal paper labels (76 × 25 mm, 12 rolls, 2 580 étiquettes, 25 mm)
185.23 €
Thermal transfer paper labels
Zebra Z-Select 2000T – Thermal transfer paper labels (102 × 25 mm, 12 rolls, 2 580 étiquettes, 25 mm)
171.11 €
Economical direct thermal paper labels
Zebra Z-Perform 1000D – Economical direct thermal paper labels (102 × 152 mm, 12 rolls, 475 étiquettes, 25 mm)
202.51 €
Thermal paper
Zebra Z-Perform 1000D 80 Receipt – Thermal paper (12 rolls)
130.02 €
Direct thermal paper labels
Zebra Z-Select 2000D – Direct thermal paper labels (100 × 50 mm, 4 rolls, 1 300 étiquettes, 25 mm)
78.67 €
Synthetic thermal transfer labels
Zebra Z-Trans 8000T – Synthetic thermal transfer labels (100 × 50 mm, 4 rolls, 2 820 étiquettes, Industrial 4")
77.98 €
Economical direct thermal paper labels
Zebra Z-Perform 1000D – Economical direct thermal paper labels (102 × 152 mm, 4 rolls, 950 étiquettes, 76 mm)
97.85 €
Economical thermal transfer paper labels
Zebra Z-Perform 1000T – Economical thermal transfer paper labels (102 × 152 mm, 4 rolls, 950 étiquettes, 76 mm)
79.87 €
Direct thermal paper labels
Zebra Z-Select 2000D – Direct thermal paper labels (51 × 25 mm, 12 rolls, 2 580 étiquettes, 25 mm)
145.89 €
Removable direct thermal paper labels
Zebra Z-Select 2000D Removable – Removable direct thermal paper labels (102 × 76 mm, 930 étiquettes)
335.07 €
Polyester thermal transfer labels
Zebra Z-Ultimate 3000T – Polyester thermal transfer labels (102 × 76 mm, 12 rolls, 930 étiquettes, 25 mm)
720.11 €
Economical thermal transfer paper labels
Zebra Z-Perform 1000T – Economical thermal transfer paper labels (57 × 32 mm, 12 rolls, 2 100 étiquettes, 25 mm)
101.65 €
Printer spare part
Zebra KIT PLATEN ROLLER ZT210 ZT220 ZT230
51.00 €
Printer spare part
Zebra Kit Cutter Upgrade ZT200 Series
453.00 €
Printer spare part
Zebra interface card, Wi-Fi, Bluetooth
377.00 €
Printer spare part
Zebra Kit Media Sensor ZT111 ZT211 ZT231
40.00 €
Printer spare part
Zebra Kit Take Label Sensor ZT111 ZT211 ZT231
40.00 €
Printer spare part
Zebra KIT CUTTER UPGRADE ZT111 ZT211 ZT231
451.00 €
Printer accessory
Zebra KIT PEEL UPGRADE ZT111 ZT211 ZT231
199.00 €
Accessory
Zebra Kit Convert 203dpi to 300dpi ZT111 ZT211
380.00 €
Accessory
Zebra KIT PRINTHEAD 203 DPI ZT231R SERIALIZ
323.00 €
The ZT231: the compact industrial printer at the right price, with a colour touchscreen and an all-metal chassis.
The Zebra ZT231 offers essential industrial features in a compact design: a metal chassis, 305 mm/s print speed, a large colour touchscreen with wizards and videos, and options that can be added on-site (RFID, Wi-Fi, peeler, cutter).
Direct thermal or thermal transfer, USB, USB Host, serial, Bluetooth BLE, Ethernet, Wi-Fi (depending on the version).
Highlights
- Width 4", 203 dpi, 305 mm/s
- All-metal chassis
- 4.3" colour touchscreen
- USB, serial, Bluetooth, Ethernet (+ Wi-Fi)
- Add-on RFID and media options
Ideal for : Production, dispatch, warehouses.
Technical specifications
| Printing | |
|---|---|
| Print technology | Thermal transfer |
| Colour | No |
| Maximum resolution | 300 x 300 DPI |
| Print speed | 203 mm/sec |
| Maximum printing width | 10.4 cm |
| Paper handling | |
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Media thickness | 0.076 - 0.010 mm |
| Maximum media length | 185.4 cm |
| Core diameter | 2.54 cm |
| Ports & interfaces | |
| Connectivity technology | Wired & Wireless |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Performance | |
| Page description languages | EPL, EPL2, ZBI, ZPL, ZPL II |
| Internal memory | 256 MB |
| Flash memory | 256 MB |
| Design | |
| Product colour | Black |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 10.9 cm (4.3") |
| Colour display | Yes |
| Control type | Touch |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Weight & dimensions | |
| Width | 241 mm |
| Depth | 432 mm |
| Height | 279 mm |
| Weight | 9.1 kg |
| Logistics data | |
| Harmonized System (HS) code | 84433210 |
Why R2Scan
Authorised reseller, stock in Belgium, device configuration and commissioning, technical support and in-house repair workshop.
